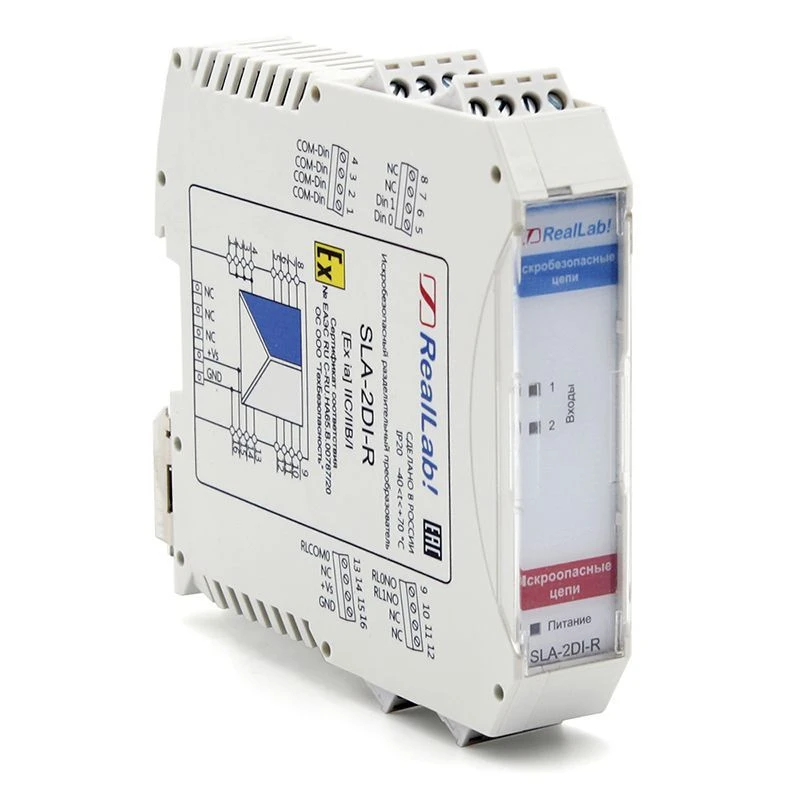

SLA-2DI-R Intrinsically safe digital signal divider converter with relay outputs
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Purpose:Intrinsically safe transmission of discrete signals from the hazardous area into the explosion-proof area
Type of spark arrestor:active with galvanic isolation
Signal/sensor type: "discrete logic" or "dry contact".
Number of sensors to be connected: 2
Signal parameters or connection method: 0-12 V
Relay output parameters: 4A/30V; 0,5A/250V
Number of outputs: 2
Power supply voltage: 10 - 30 V
Power consumption: not more than 1.5 W
Explosion protection marking: [Ex ia] IIC/IIB/I
Protection class of a person against electric shock: 01 according to GOST 12.2.007.0-75
Operating temperature range: -40°C to +70°C
Average MTBF: 100 000 h.
Average service life, not less than 12 years
Overall dimensions (HxWxH): 99.4x22.5x109
Mounting: on DIN-rail
Degree of protection: IR20 according to GOST 14254-2015
Warranty: 18 months
Type of spark arrestor:active with galvanic isolation
Signal/sensor type: "discrete logic" or "dry contact".
Number of sensors to be connected: 2
Signal parameters or connection method: 0-12 V
Relay output parameters: 4A/30V; 0,5A/250V
Number of outputs: 2
Power supply voltage: 10 - 30 V
Power consumption: not more than 1.5 W
Explosion protection marking: [Ex ia] IIC/IIB/I
Protection class of a person against electric shock: 01 according to GOST 12.2.007.0-75
Operating temperature range: -40°C to +70°C
Average MTBF: 100 000 h.
Average service life, not less than 12 years
Overall dimensions (HxWxH): 99.4x22.5x109
Mounting: on DIN-rail
Degree of protection: IR20 according to GOST 14254-2015
Warranty: 18 months
Specifications
Guarantee:
18
Type of product according to PP RF 616
Other tools and instruments for measurement, inspection and testing
Overall dimensions (HxWxH):
99.4x22.5x109. mm
Weight, not more:
300 g
Average service life, at least
B1/B8 2100/900 MHz a
Average MTBF:
100000
