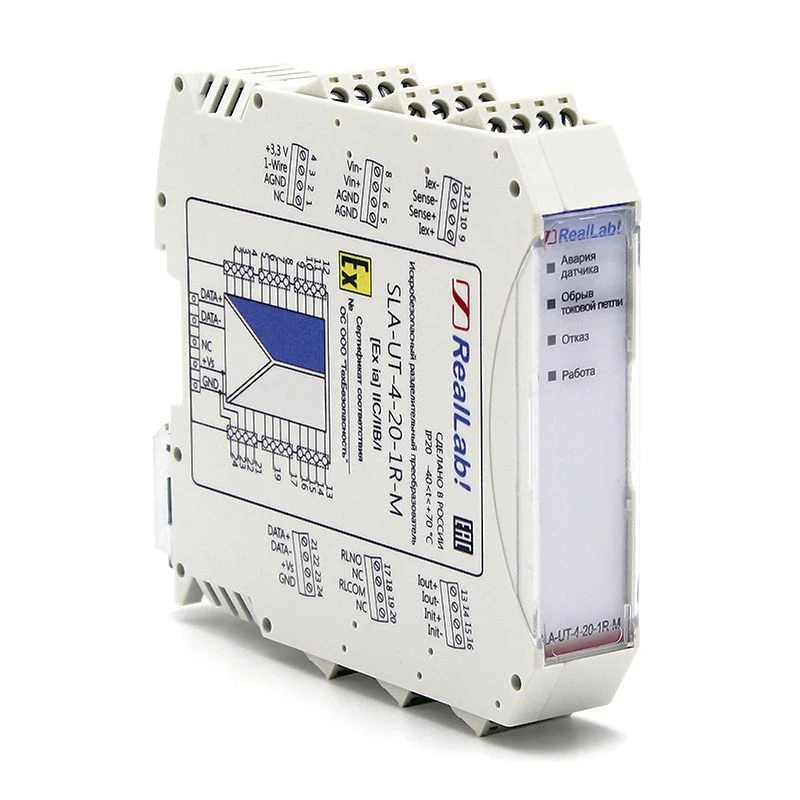

SLA-UT-4-20-20-1R-M Intrinsically safe transmitter of signals from temperature sensors with 4-20 mA output, RS-485 (Modbu

Purpose: conversion of signals from sensor (thermocouple, resistance thermocouple, DS18B20) located in intrinsically hazardous area into unified current signal 4-20 mA in intrinsically safe area.
Intrinsic barrier type: active with galvanic isolation
Signal type: voltage, resistance, 1-Wire
Connection: 1 channel of analogue input of signals from: thermocouple type J, K, B, L, E, S, R, N, T, A1, A2, A3, resistance thermocouple type Pt50, Pt100, Pt500, Pt1000, 50P, 100P, 500P, 1000P, Cu50, Cu100, Cu500, Cu1000, 50M, 100M, 500M, 1000M, 100N, 500N, 1000N, sensor DS18B20.
1 analogue current output channel 4-20 mA
1 control relay output
Power supply voltage: 10-30 V
Power consumption: 2.7 W max.
Explosion protection marking: [Ex ia] IIC/IIB/I
Operating temperature range: -40°C to +70°C
Overall dimensions (HxWxH): 99.4x22.5x109
Degree of protection: IR20
Warranty: 18 months
