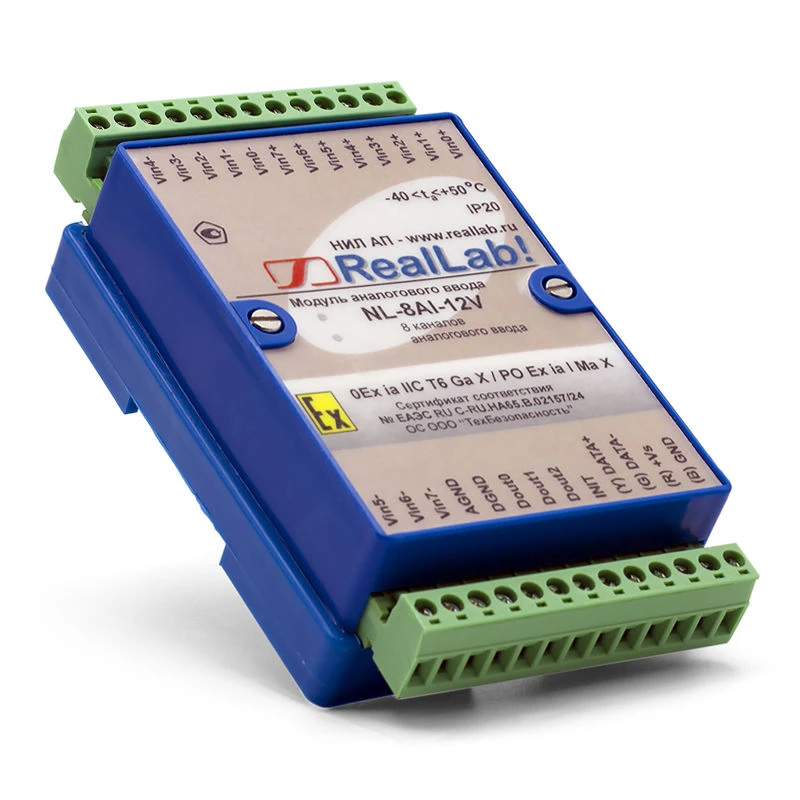

NL-8AI-12V Intrinsically safe universal analogue input module

Purpose: universal module for analogue input (measurement) of voltage or current and discrete output Explosion protection marking: 0Ex ia IIC T6 Ga X or PO Ex ia I Ma X Analogue input: 8 differential analogue input channels with software-settable ranges 150 mV, 500 mV, 1 V, 5 V, 10 V, 20 mA Digit capacity: 16 digits Galvanic isolation: 2500 V Bandwidth: 2.62 Hz Measurement error: basic error of measurement not worse than 0.2% Interference coefficient: the coefficient of attenuation of general type interference with a frequency of 50 Hz - not less than 100 dB Temperature: temperature range from -40 to +50 C Connection interface: RS-485, Modbus RTU and DCON protocol Discrete output: 3 isolated channels of discrete output Optional: PID and relay regulators Power supply voltage: from 10 V to 13 V Power consumption: 0.6 W OKPD2 code: 26.51.43.117 Dimensions (HxWxH): 123x76x33 mm Warranty: 18 months
