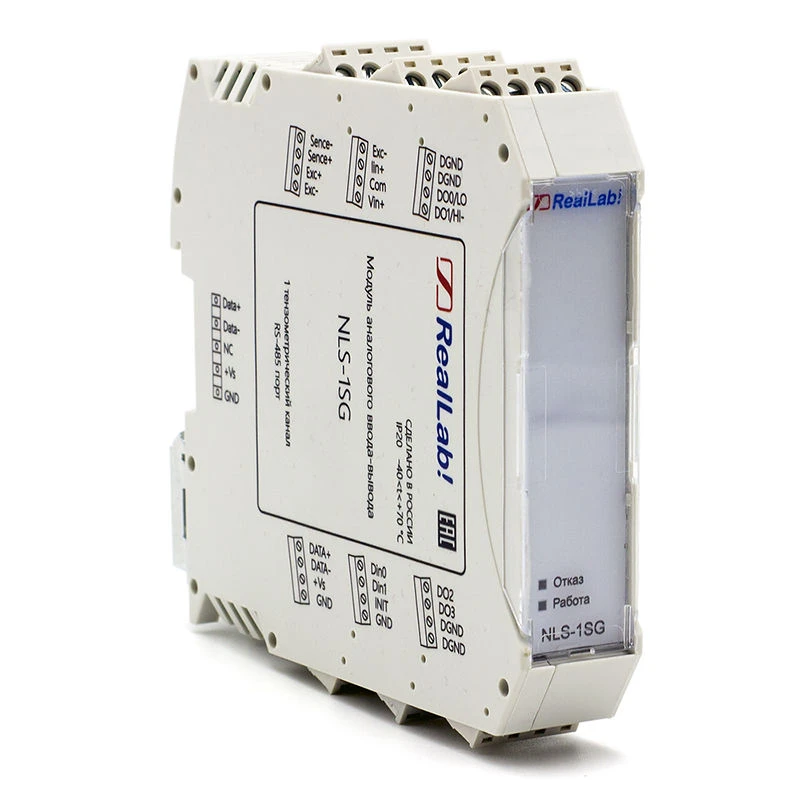

NLS-1SG Load cell signal input module

Purpose: for measuring signals of bridge strain gaugesConnection: 1 analogue input (four or six wire circuit) up to 6 sensors connected in parallel with resistance not less than 350 Ohm at excitation voltage 10 VExcitation setting: Software setting of strain gauge excitation voltage, in the range of 0 to 10 V with a discreteness of 1 mVMeasurement error: not more than 0.1 %Voltage and current ranges: seven (7) input software switchable ranges: six for voltage 15 mV, 50 mV, 100 mV, 500 mV, 1 V, 2.5 V and one for current 20 mA Analogue outputs: 1 analogue output, voltage output range 0-10 V, maximum output current 170 mAdiscrete outputs and inputs: 4 discrete outputsTemperature: from -40 to +70 SI Connection interface: RS-485Protocols: DCON and MODBUS RTUPower supply voltage: from 10 V to 30 VPower: not more than 7 W OKPD2 code: 26.51.43.117Sizes (H x W x D): 109x22.5x113 mmWarranty: 18 months
