Converters measuring voltage and current strength and power of electric networks of direct current and single-phase displacement
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description

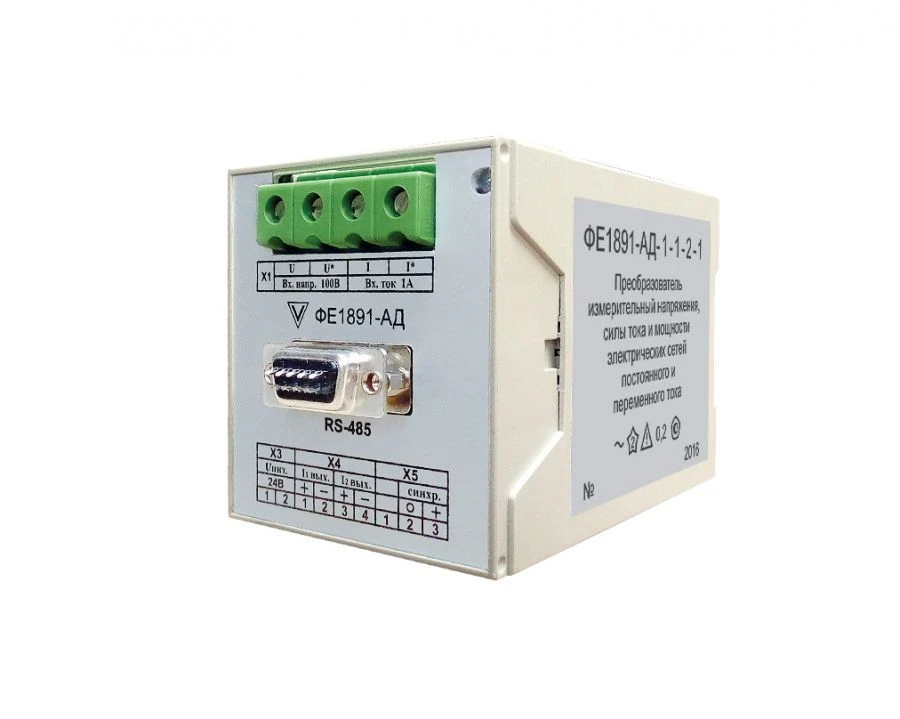

Converters FE1891-AD are designed for linear conversion of voltage, current and power of electric networks of direct current or single-phase networks of alternating current with frequency 50 Hz into unified DC signal and digital signal.
Specifications
Housing material
Plastic
Explosion protection
no
Ambient temperature range
-30...50 °C
Type of primary transducer (PT)
no
Output, mA
4...12
Type of digital protocol
Modbus RTU
Vibration resistance according to GOST R 52931-2008
complies with the requirements of group m40 according to gost 17516.1
Length of mounting part
116 mm
Mounting of the measuring transducer (MT)
On din-rail ts35 (din tn50022) using the clamp; located on the back of the inverter.
Metrological requirements
Present error of measured parameters: voltage and AC power - 0;2%; voltage and DC power - 0,2%; active and reactive AC power 0,5%; DC power 0,5%.
Input nominal signal
100 V; 220 V; 380 V; 1 A; 5 A
Supply voltage, V
24 V or 220 V DC or AC, 100 V AC
Inspection interval
6 a
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
