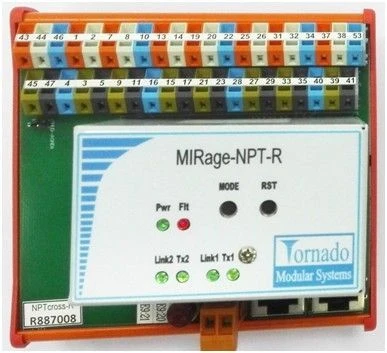

Resistance Thermometer Signal Input Devices MIRage-NPT-R for Accurate Temperature Measurement

Data Processing Devices

Manufacturer: Tornado Modular Systems LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The MIRage-NPT-R devices are designed to measure temperatures using resistance thermocouples (RTD) of different graduations and transmit the measured values via a redundant digital interface Ethernet 10/100 over twisted pair using ModBus protocol. The MIRage-NPT-R devices have 8 measuring channels (IR). The interface of each IR assumes connection of sensors by 4-wire, 3-wire and 2-wire scheme.

For each IR there are four terminals for connection - two terminals of the measured voltage input, one contact of the current output, one contact of the common contact. During measurement, the input voltages from the IRs are multiplexed into a single signal for the analogue-to-digital converter (ADC), and the common current source is multiplexed to the current output for that channel. The devices have one additional internal reference channel that serves for internal automatic calibration.

MIRage-NPT-R devices are designed for creation of automated control systems of technological processes...

Specifications

Architecture

autonomous distributed I/O with redundant ethernet communication

External connectors

2 rj-45, +24v power supply, spring terminals for signal cable

Form factor

din-35 rail mount

Power Type

+24 dc

Base frequency of the processor

0.1

Signal-to-noise ratio

Flat grinder, Specialised grinder

Number of measuring channels

8 pcs

Polling time

Data exchange protocol

modbus udp/tcp slave

Power consumption

2.5 W

Galvanic insulation

Group

Dimensions width

114 mm

Weight

450 year

Type of measuring channels

resistance thermocouple signals

Height

108 mm

Data transfer rate

100

Number of processor cores

1 pcs

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
