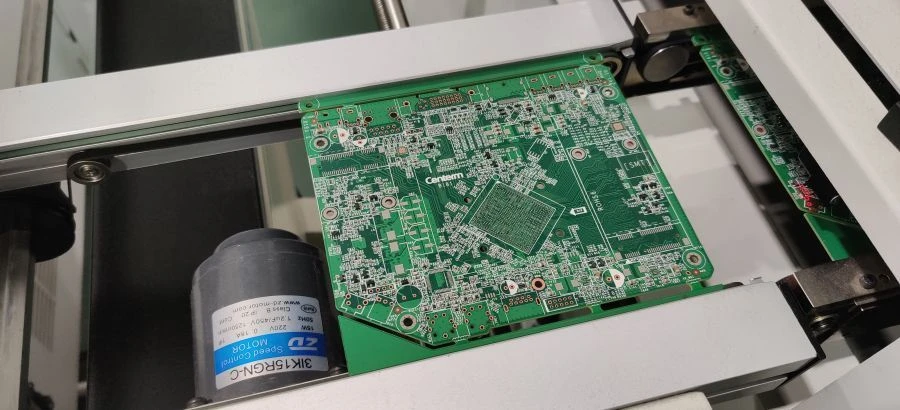

TONK TN1900 System Board for Thin Clients and Terminals

The system board of TONK TN1900 trade mark is designed for use in thin clients and terminal computers of TONK TN1900 series. Overall dimensions of the finished board: 146mmx135mmx25mm Specifications: Form factor: nanoITX Processor: Intel Celeron Baytrail J1900 Quad-Core 2.0 GHz (2M L2 cache, up to 2.42GHz) Supported RAM: DDR3L up to 8GB Interfaces and ports: 1 x 10/100/1000 LAN (RJ-45) port, 1 x DDR3L RAM slot, 1 x DVI-I, 1 x DP, 5 x USB 2.0 ports, 1 x USB 3.0 port, 2 x 3.5mm Mini-Jack ports (audio input and output), 1 x external power adapter socket, 1 x m-SATA port, 1 x BIOS battery connector, 1 x mini-PCIe port, 1 x LED power button.
