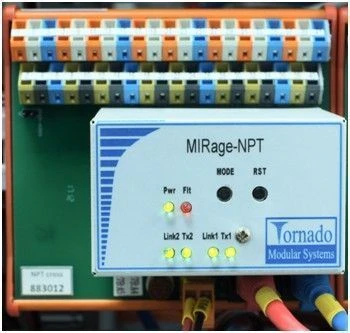

MIRage-NPT Signal Input Devices for Resistance Temperature Sensors

Available for Import

MIRage-NPT Signal Input Devices for Accurate Temperature Measurement Applications

Data Processing Devices

Manufacturer: Tornado Modular Systems LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The MIRage-NPT devices are designed to measure temperatures using resistance thermocouples (RTDs) of different graduations and transmit the measured values via a redundant digital interface Ethernet 10/100 over twisted pair using ModBus protocol. The MIRage-NPT devices have 8 measuring channels (IRs). There are four connection terminals for each IC - two terminals for the measured voltage input, one current output contact, one common contact. During measurement, the input voltages from the ICs are multiplexed into a single signal for the analogue to digital converter (ADC) and the common current source is multiplexed to the current output for that channel. MIRage-NPT devices are designed to create automated process control systems. MIRage-NPT devices use the central processor K1986BE92QI, manufactured in the Russian Federation.

Specifications

Base frequency of the processor

0.1

Architecture

autonomous distributed I/O with redundant ethernet communication

External connectors

2 RJ-45; +24V power supply; spring terminals for signal cable

Form factor

din-35 rail mount

Power Type

+24V DC

Consumption current, mA

Data transfer rate

100

Type of measuring channels

resistance thermocouple signals

Weight

400 year

Dimensions width

114 mm

Galvanic insulation

Group

Power consumption

2.5 W

Data exchange protocol

Modbus UDP/TCP Slave

Polling time

Number of measuring channels

8 pcs

Height

108 mm

Number of processor cores

1 pcs

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
