Available for ImportRodiola Multilayer Motherboard for PC - Reliable Base for All Components
Manufacturer:DELTA COMPUTERS LLC
Price:Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description

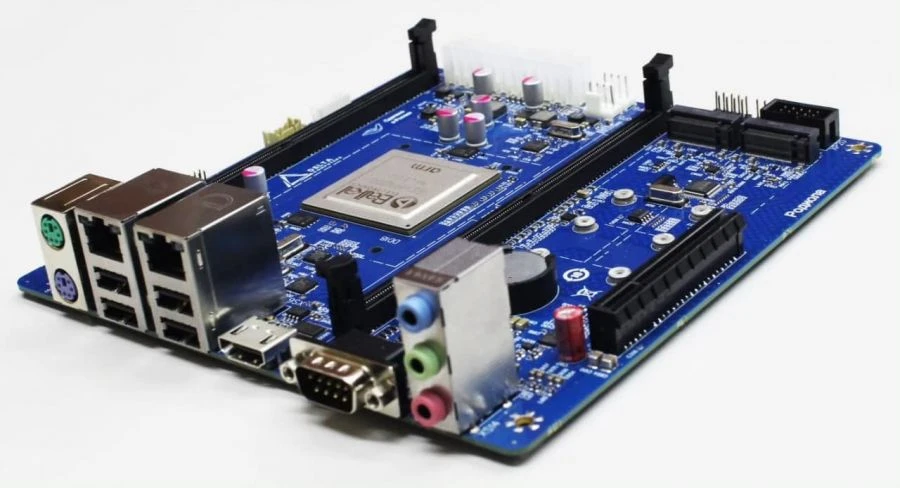

Multilayer printed circuit board, which is the basis of a personal computer, acts as a link between all components and ensures the joint operation of: processors, RAM and other components of the personal computer.
Specifications
External connectors
Connector HDMI ver. 2.0 - 1 pc, LVDS to DisplayPort*, or LVDS to VGA*, or LVDS to HDMI* - 1 pc. RS-232 (COM port DB9) - 1 pc.
Form factor
170x170 mm
Base frequency of the processor
1.5
Number of RAM slots
2 pcs
Connectors for connecting data storage devices
PCIe x8 Physical PCIe x16 Gen3 expansion card slot (PCIe x8 Gen3 electrical slot) - 1 pc; PCIe x4 M.2 PCIe x4 Gen3 SSD slot for 2242/2260/2280 size - 2 pcs.
Number of SATA drive slots
2 pcs
USB 2.0 connector
4 pcs
HD Audio Connectors
JACK 3.5mm 3 pcs. ("Mic In", "Line Out", "Line In")
RJ-45 connector
RJ-45 100/1000 Mb/s (with ACT/LINK LED and SPEED indicators) - 2 pcs.
PS/2 Keyboard and Mouse Connectors
2 pcs
Connector for PC cooling fan connection
2 pcs
Connector for microprocessor cooling fan connection
1 pcs
Battery connector
Coin Cell connector for BIOS power supply battery - 1 pc.
Weight
~ 1kg
Height
NZ-150-14,5 mm
Number of processor cores
8 pcs
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
