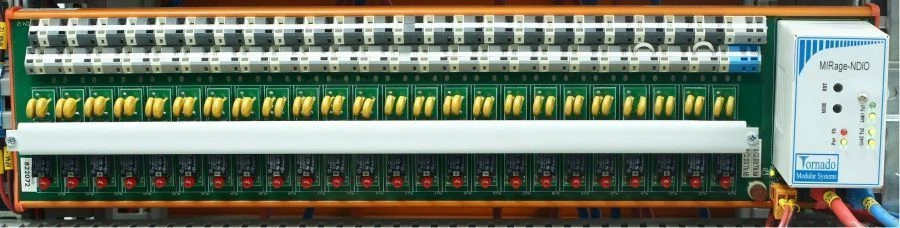

Discrete Input/Output Device MIRage-NDIO for Efficient Signal Control in Systems

Data Processing Devices

Manufacturer: Tornado Modular Systems LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

MIRage-NDIO devices are designed for input and/or output of discrete signals when building distributed information and control systems. Reading the states of signals of discrete inputs and issuing control commands to the discrete outputs is performed via a redundant digital interface Ethernet 10/100 over twisted pair using the ModBus protocol. MIRage-NDIO devices have 24 discrete channels (DCs).

Each DC can be input (DI) or output (DO) (determined by software configuration and installation of the appropriate matching module). There are modules for matching binary inputs for different voltages and modules for matching relay binary outputs. The DCs are individually galvanically isolated from each other and from the system part.

MIRage-NDIO devices are designed to create control systems in various industries. MIRage-NDIO devices central processor K1986BE92QI, manufactured in the Russian Federation, is used in MIRage-NDIO devices.

Specifications

Base frequency of the processor

0.1

Architecture

autonomous distributed I/O with redundant ethernet communication

External connectors

2 RJ-45; +24V power supply; spring terminals for signal cable

Form factor

din-35 rail mount

Power Type

+24V DC

Consumption current, mA

430

Data transfer rate

100

Type of I/O channels

input/output discrete signals up to 220v

Weight

1400 year

Dimensions width

450 mm

Galvanic insulation

Individual

Power consumption

2.5 W

Data exchange protocol

Modbus UDP/TCP Slave

Polling time

Number of discrete I/O channels

24 pcs

Height

108 mm

Number of processor cores

1 pcs

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
