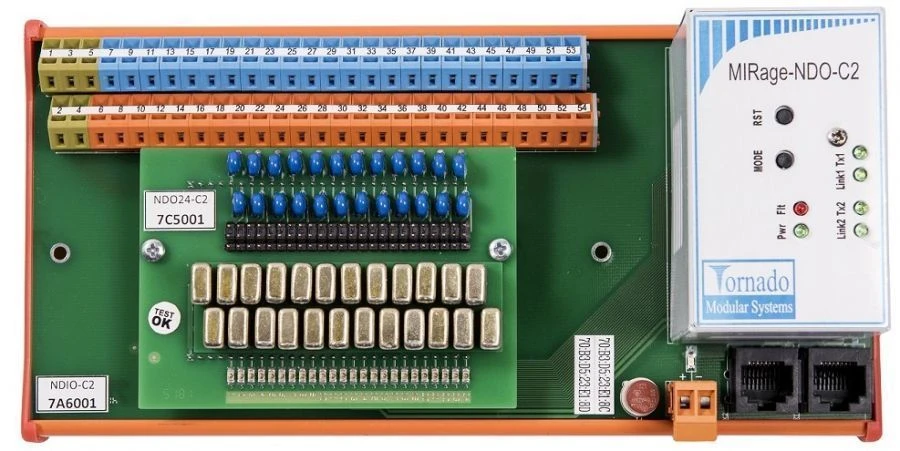

Discrete Output Device MIRage-NDO-C2 for Low Power Signal Control

Data Processing Devices

Manufacturer: Tornado Modular Systems LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Devices MIRage-NDO-C2 are designed for the formation of low-power discrete signals of direct and alternating current. Switching of channels is carried out through relay contacts. Relay contacts are switchable, the switching contact is common for all channels, for each channel can be selected type of connected contact: normally open or normally closed, using jumpers on the coordination board.

The relay is controlled via a redundant Ethernet 10/100 twisted pair digital interface using ModBus protocol. MIRage-NDO-C2 devices have 24 output discrete channels (DC). The nominal switching voltage is 24 V.

The DCs are galvanically isolated from the system part. MIRage-NDO-C2 devices are designed to create control systems in various industries. MIRage-NDO-C2 devices use the central processor K1986BE92QI manufactured in the Russian Federation.

Specifications

Base frequency of the processor

0.1

Architecture

autonomous distributed I/O with redundant ethernet communication

External connectors

2 RJ-45; +24V power supply; spring terminals for signal cable

Form factor

din-35 rail mount

Power Type

+24V DC

Consumption current, mA

475

Data transfer rate

100

Type of control channels

digital output 24V

Weight

700 year

Dimensions width

216 mm

Galvanic insulation

Group

Power consumption

B1/B8 2100/900 MHz W

Data exchange protocol

Modbus UDP/TCP Slave

Polling time

Number of discrete control channels

24 pcs

Height

108 mm

Number of processor cores

1 pcs

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
