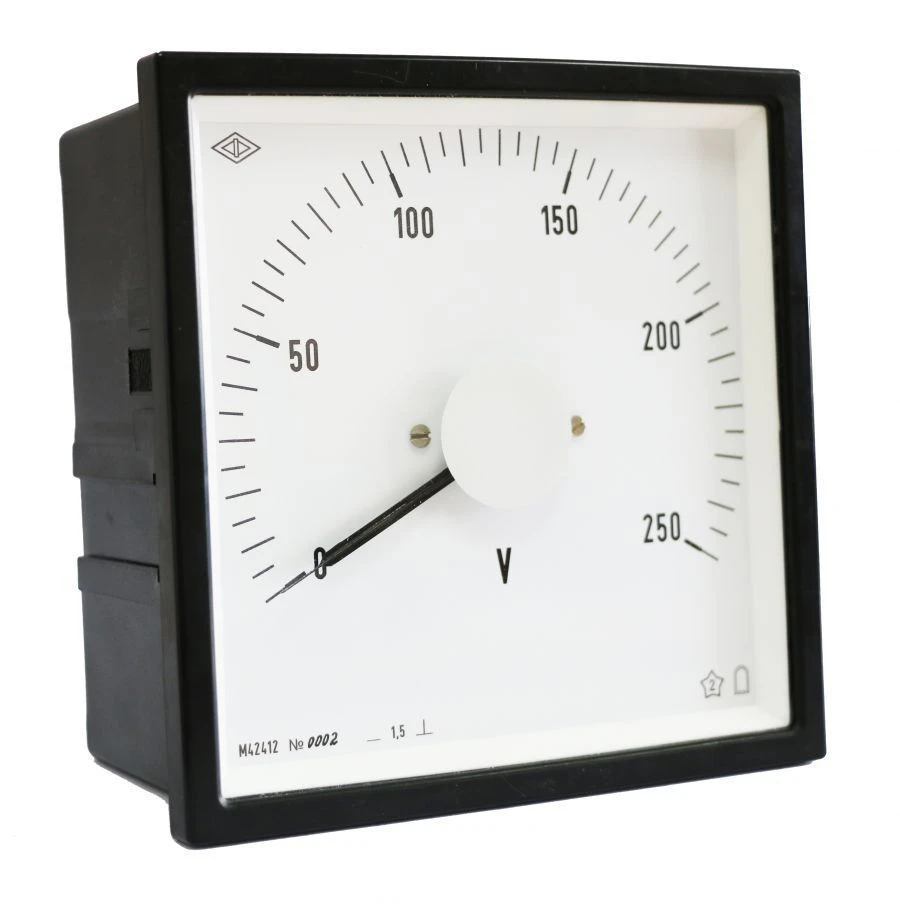

Panelboard milliammeter, ammeter and voltmeter: version M42412
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
The M42412 devices are designed for measuring current and voltage in DC circuits in various fields of industry and railway transport. The devices are manufactured in a plastic housing, are vibration- and shock-resistant. The scales of the devices can be made in any units of measurement, with special marks, inscriptions, etc. according to the customer's data. The instruments have the degree of protection against environmental impact on the front panel IP53 (for instruments with "Sea Register" acceptance - IP54). The dials and scales of the instruments are made in accordance with DIN 43802. The instruments are verified in accordance with the requirements of GOST 8.497-83. M42412 are included in the State Register of Measuring Instruments of the Russian Federation No. 57444-14. Interverification interval is 3 years.
Specifications
Dimensions of the front panel, mm
120x120
Panel cutout, mm
112x112
Accuracy class
1,5
Degree of protection IP
IP53 (for devices with "Marine Register" acceptance - IP54)
Weight, kg, not more
0,4
End value of the DC measuring range (direct connection)
1 mA; 2 mA; 5 mA; 10 mA (special version); 20 mA; 4...20 mA (special version); 70 mA; 5 A; 10 A
End value of the DC measuring range (connection with 75 mV external shunt and calibrated resistance wires)
10 A; 20 A; 30 A; 50 A; 75 A; 100 A; 150 A; 200 A; 300 A; 400 A; 500 A; 600 A; 750 A; 1 kA; 1.5 kA; 2 kA; 3 kA; 4 kA; 5 kA; 6 kA; 7.5 kA; 10 kA
End value of the DC voltage measuring range (direct connection)
5 V (special version), 10 V; 15 V; 30 V; 50 V; 100 V; 150 V; 250 V; 750 V
End value of the measuring range of the DC voltage (connection with external additive resistor with nominal value
1 kV; 1.5 kV; 2 kV; 3 kV; 4 kV
Operating temperature range
-50...+60 °?
Scale length, mm, not less
200
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
