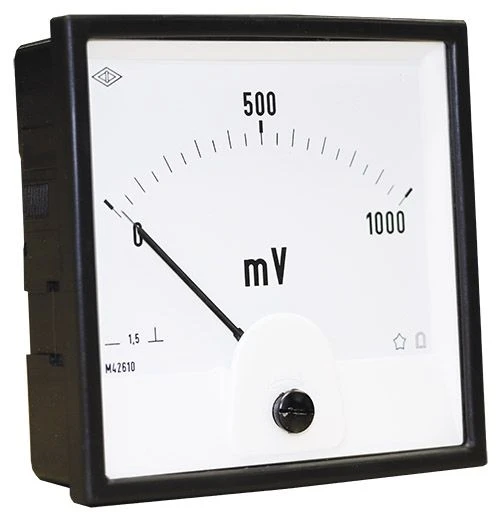

Microammeters, millivoltmeters of direct current panel M42610

Panel Analog Measuring Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Devices M42610 are designed to measure current and voltage in DC electric circuits in various industries. The devices are installed in shields with square cutouts. Location of the measuring mechanism in these devices is central. The devices can be manufactured: with other measuring ranges and with scales calibrated in units of any physical quantities; with a zero mark at the edge or inside the measuring range. The dials and scales of the instruments are made according to Din 43802. The instruments are verified in accordance with the requirements of GOST 8.497-83. M42610 are included in the State Register of measuring instruments of the Russian Federation No. 68770-17. Interval of verification is 2 years.

Technical Specifications

Dimensions of the front panel, mm	96x96
Panel cutout, mm	92x92
Accuracy class	1,5; 2,5
Degree of protection IP	Dustproof IP50
Weight, kg, not more	0,2
Current measuring range (direct connection)	50 µA (only with zero mark in the middle of the measuring range scale); 100 µA; 200 µA; 300 µA; 500 µA; 1000 µA
Voltage measuring range (connection with a pair of 0.035 ohm calibrated wires)	25 mV; 50 mV; 75 mV; 150 mV; 300 mV; 500 mV; 750 mV; 1000 mV
Operating temperature range	-30 …+50 °C
Scale length, mm, not less	76

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
