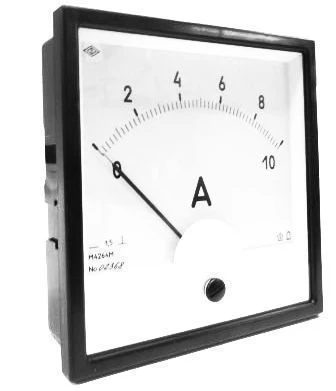

Microammeter, milliammeter, ammeter and panel voltmeter: version M4264M

Panel Analog Measuring Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Devices M4264M are designed to measure current and voltage in electric circuits of direct current. DC instruments can be manufactured: with zero mark at the edge or inside the measuring range; with other measuring ranges and with scales calibrated in units of any physical quantities, with special marks, inscriptions, etc. according to the customer's data. The normal position of the instruments is vertical or horizontal. It is possible to produce instruments of normal position at an angle to the horizon. The design of enclosures provides protection degree IP50 or IP54 for the front panel, IP00 for live parts. Verification of the devices is performed in accordance with the requirements of GOST 8.497-83. The dials and scales of the devices are made in accordance with GOST 5365-83. M4264M are included in the State Register of measuring instruments of the Russian Federation No. 68770-17. Interval of verification is 2 years.

Specifications

Dimensions of the front panel, mm 120x120

Panel cutout, mm 112x112

Scale length, mm, not less 95

Accuracy class 1,5

Degree of protection IP Dustproof IP50 (for M4264M instruments with "Sea Register" acceptance - IP54)

Weight, kg, not more 0,35

Current measuring range (direct connection) mA (0.5; 0.75; 1; 3; 5; 10; 15; 20; 30; 50; 75; 100; 150; 300; 500; 600); A (1; 2; 3; 5; 10; 20)

Current measurement range (connection with 75 mV external shunt and a pair of 0.035 ohm calibrated wires) A (30; 50; 75; 100; 150; 200; 300; 500; 750); kA (1; 1.5; 2; 3; 4; 5; 6; 7.5)

Current measurement range (connection with 150 mV external shunt and a pair of 0.035 ohm calibrated wires) A (200; 400; 600); kA (1; 2; 3; 4; 6; 6; 8; 10; 15; 20; 30)

Voltage measuring range (direct connection) B - 0.075 (with a pair of calibrated wires of 0.035 ohms resistance); 0.15 (with a pair of calibrated wires of 0.035 ohms resistance); 3; 7.5; 15; 30; 30; 50; 50; 75; 100; 150; 150; 250; 250; 300; 300; 400; 500; 600; 750

Voltage measuring range (connection with external additive resistor with nominal current 5 mA) kV - 1; 1,5; 3; 10; 15

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
