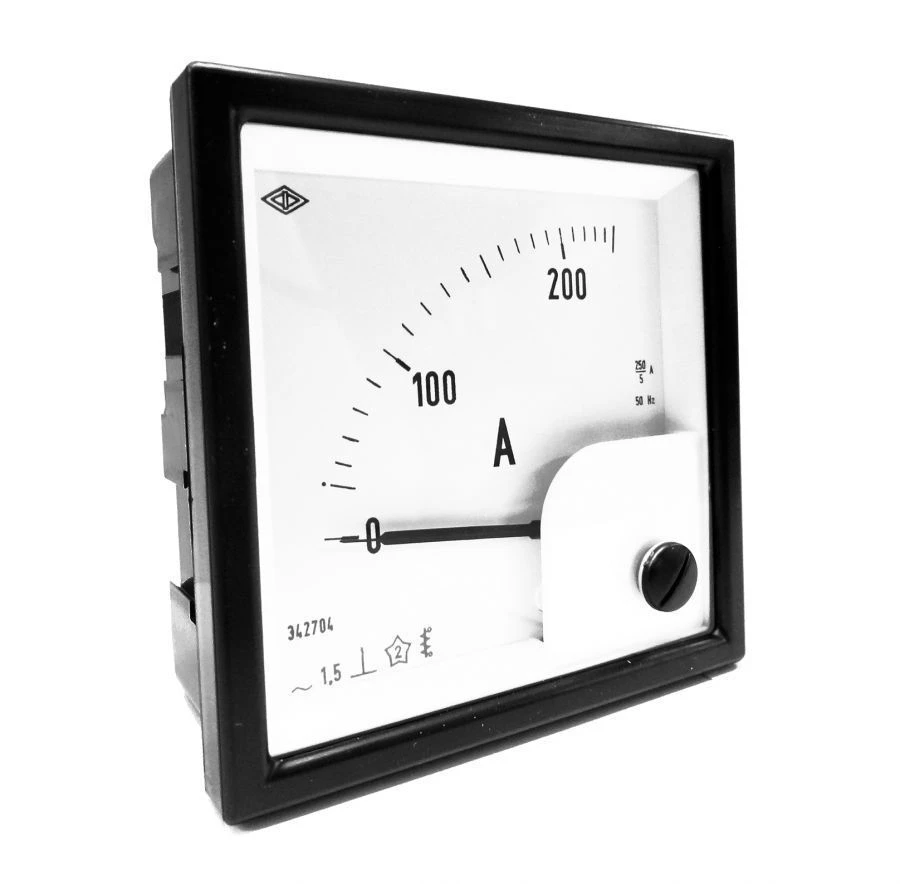

Microammeter, milliammeter, ammeter and voltmeter panel-mounted: version E42704.

Panel Analog Measuring Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

The E42704 instruments are designed to measure current in AC circuits. Overall and installation dimensions correspond to European standards. The arrangement of the mechanism is angular. The dials and scales of the instruments are made in accordance with Din 43802. Instruments verification is performed in accordance with the requirements of GOST 8.497-83. E42704 are included in the State Register of Measuring Instruments of the Russian Federation No. 69582-17. Interverification interval is 2 years.

Specifications

Dimensions of the front panel, mm 72x72

Panel cutout, mm 68x68

Accuracy class 1,5

Degree of protection IP Dustproof IP50 (for devices with "Sea Register" acceptance - IP54)

Weight, kg, not more 0,35

Operating temperature range -40...+50 °?

Upper limit of current measuring range (direct connection) ? - 1; 1,5; 2; 2,5; 3; 4; 5; 6; 10; 20; 30; 50

Upper limit of current measuring range (connection via current transformer with 5 A secondary current) A (5; 10; 15; 20; 30; 40; 50; 75; 80; 100; 150; 200; 250; 250; 300; 400; 500; 600; 750; 800); kA (1; 1.2; 1.5; 2; 3; 4; 5; 6; 8; 10; 20; 30; 40)

Upper limit of current measuring range for overload ammeter (overload with factor 2) (directly connected) 5 ?

Scale length, mm, not less 60

Upper limit of the current measuring range for overload ammeter (overload with factor 2) (connection via transfor A (15; 20; 30; 40; 50; 75; 80; 100; 150; 200; 300; 400); kA (0.5; 0.6; 0.8; 1;1.5; 2; 4)

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
