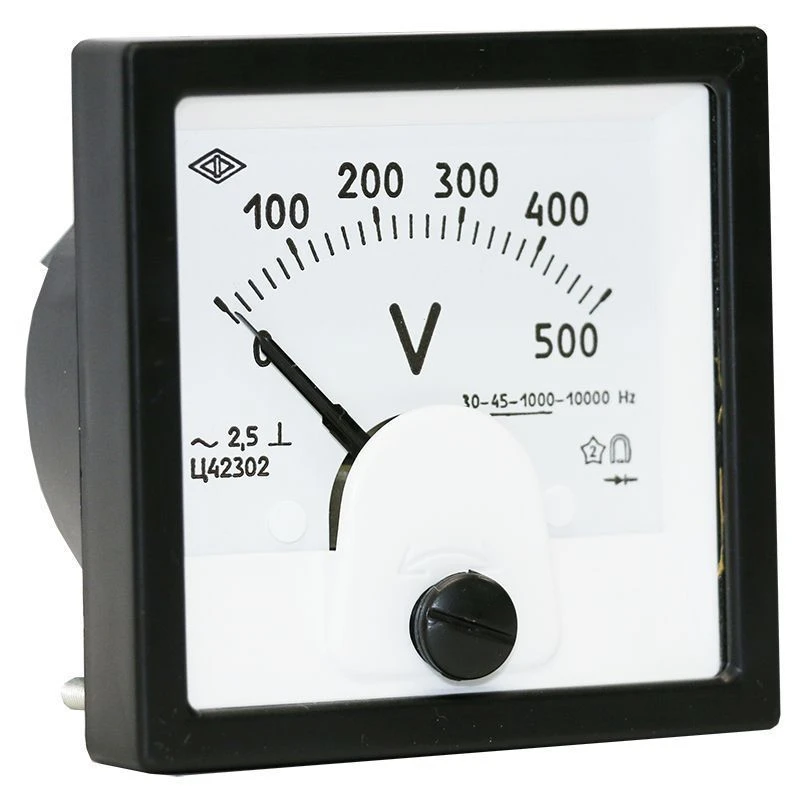

Panelboard microammeter, milliammeter, ammeter and voltmeter: version Ts42302

Panel Analog Measuring Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Shield instruments Ts42302 are produced by magneto-electric system with rectifier and are designed for measuring alternating current and voltage. Ammeters and voltmeters are manufactured with a zero mark at the edge of the range. The instruments can be manufactured with scales in any unit of measurement. The dials and scales of the devices are made in accordance with GOST 5365. The protection degree of the front panel is IP50 or IP54 (for instruments with "Sea Register" acceptance - IP54), the protection degree of current-carrying rods is IP00. Verification of the devices is performed in accordance with the requirements of GOST 8.497-83. Ts42302 are included in the State Register of measuring instruments of the Russian Federation No. 69582-17. Interverification interval is 2 years.

Specifications

Degree of protection IP Dust-proof IP50 or dust-splash-proof IP54 (for devices with "Sea Register" acceptance - IP54)

Weight, kg, not more 0,12

Operating temperature range -30...+50 °C (for mA and µA), -50...+60 °C (for V)

Dimensions of the front panel, mm 60?60

Panel cutout, mm Ø57,5

Scale length, mm, not less 44

Accuracy class µA - 1.5; 2.5; mA, V - 2.5

Upper limit of the measuring range (direct connection) µA (25; 50; 100; 200; 300; 500); mA (1; 5; 10; 15; 10-30; 15-50; 30-100; 50-150; 100-300; 150-500; 300-1000); V (0.5-3; 1-7.5; 2-15; 30; 50; 50; 75; 150; 250; 250; 300; 500; 600)
