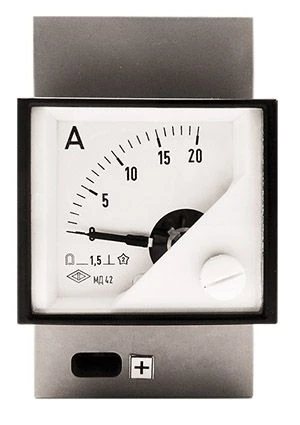

Microammeters, milliammeters, ammeters, millivoltmeters, dc voltmeters panel MD42

The MD42 instruments are designed to measure current and voltage in DC circuits and are mounted on a DIN-rail 35 mm wide EN 50022. The position of the measuring mechanism in the devices is angular. The instruments are available with a zero mark at the edge or inside the measuring range. The dials and scales of the instruments are made according to DIN 43802. The instruments are verified in accordance with the requirements of GOST 8.497-83. MD42 are included in the State Register of measuring instruments of the Russian Federation No. 28570-10. Interverification interval is 1 year.
