Panelboard milliammeter, ammeter and voltmeter: version ?42412
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description

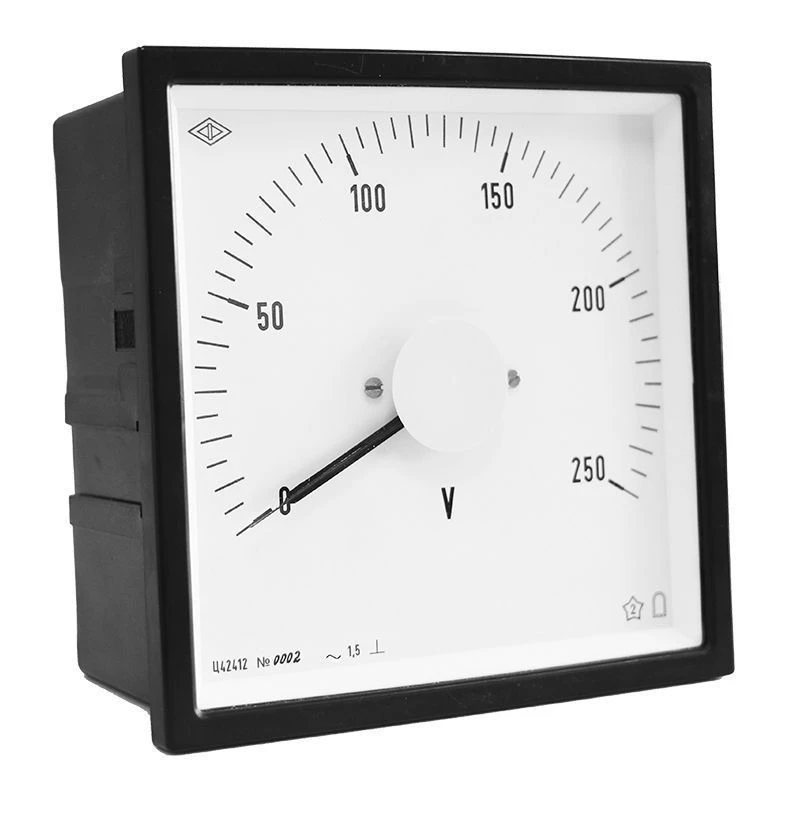

Devices Ts42412 are designed to measure voltage in single-phase AC circuits with frequency of 50 Hz in various areas of industry and railway transport.
The devices are manufactured in a plastic case, are vibration- and shock-resistant. The devices have the degree of protection against environmental impact on the front panel IP53 (including for devices with OM2 version). The dials and scales of the instruments are in accordance with DIN 43802. The instruments are verified in accordance with the requirements of GOST 8.497-83. Ts42412 are included in the State Register of Measuring Instruments of the Russian Federation No. 57444-14. Interverification interval is 3 years.
The devices are manufactured in a plastic case, are vibration- and shock-resistant. The devices have the degree of protection against environmental impact on the front panel IP53 (including for devices with OM2 version). The dials and scales of the instruments are in accordance with DIN 43802. The instruments are verified in accordance with the requirements of GOST 8.497-83. Ts42412 are included in the State Register of Measuring Instruments of the Russian Federation No. 57444-14. Interverification interval is 3 years.
Specifications
End value of the voltage measuring range (connection via voltage transformer with secondary voltage 380 V)
kV - 12; 30
Dimensions of the front panel, mm
120x120
Panel cutout, mm
112x112
Scale length, mm, not less
200
Accuracy class
1,5
Degree of protection IP
IP53 (for devices with "Marine Register" acceptance - IP54)
Weight, kg, not more
0,4
Operating temperature range
-50...+60 °?
End value of the voltage measuring range (direct connection)
? - 10; 20; 30; 50; 75; 100; 150; 250; 300; 400; 750
End value of the voltage measuring range (connection via voltage transformer with secondary voltage 100 V)
kV - 1; 1.5; 2; 3; 4; 7.5; 10; 12; 15; 30
