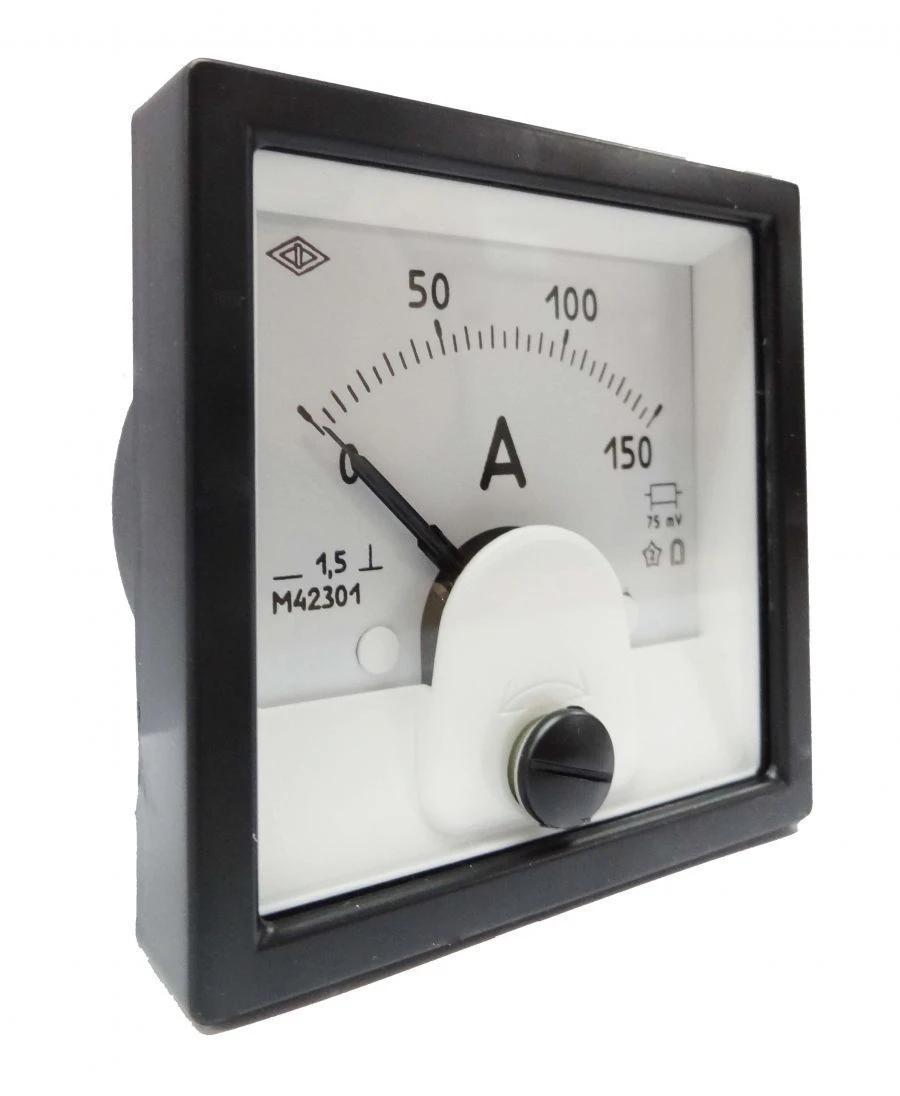

Panelboard microammeter, milliammeter, ammeter and voltmeter: version M42301.

Panel Analog Measuring Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Devices M42301 are designed to measure current and voltage in DC electric circuits. The devices can be manufactured: with increased resistance to mechanical influences; with IP54 degree of protection against environmental impact on the front panel; with zero mark on the edge or inside the measuring range; with other measuring ranges and scales, graduated in units of any physical quantities, with special marks, inscriptions, etc. according to the customer's data. The normal position of the instruments is vertical or horizontal. It is possible to produce instruments of normal position at an angle to the horizon. The design of enclosures provides protection degree IP50 or IP54 for the front panel, IP00 for live parts. Verification of the devices is performed in accordance with the requirements of GOST 8.497-83. The dials and scales of the devices are made in accordance with GOST 5365-83. M42301 are included in the State Register of measuring instruments of the Russian Federation No. 68770-17. Interval of verification is 5 years.

Specifications

Dimensions of the front panel, mm 60?60

Panel cutout, mm Ø57,5

Accuracy class 1,5; 2,5

Degree of protection IP Dustproof IP50 or dust and splashproof IP54 (for M42301 instruments with "Sea Register" acceptance - IP54)

Weight, kg, not more 0,15

Current measuring range (direct connection) µA (100; 150; 200; 300; 500; 1000); mA (1; 5; 10; 15; 20; 30; 50; 100; 150; 300; 500; 600; 3/30; 3/50; 5/50); A (1; 2; 3; 5; 10; 15)

Current measurement range (connection with 75 mV external shunt and a pair of 0.035 ohm calibrated wires) A (20; 30; 50; 75; 75; 100; 150; 200; 300; 500; 750;200-0-750); kA (1; 1.5; 2; 4; 6)

Voltage measuring range (direct connection) ? (1; 2; 3; 7,5; 10; 15; 20; 30; 50; 75; 100; 150; 250; 300; 500; 600; 3/30; 3/300; 30/300; 4/100; 7,5/300; 8/300; 10/100; 15/150; 15/300; 20/40; 0,3/15-0-0,3/15)

Voltage measuring range (connection with external additive resistor with nominal current 5 mA) B (150/1500; 15/150/1500); kV (1; 1,5; 3)

Voltage measuring range (connection with a pair of 0.035 ohm calibrated wires) 0,075 ?

Scale length, mm, not less NZ-150-14,5

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
