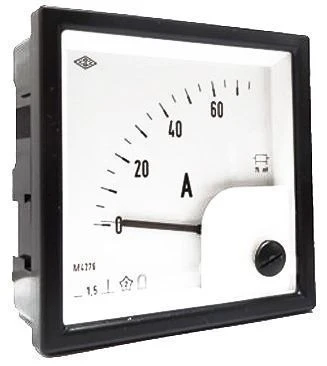

Panelboard microammeter, milliammeter, ammeter and voltmeter: version M4276

Panel Analog Measuring Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

The M4276 instruments are designed to measure current and voltage in DC circuits. The devices have an angular arrangement of the measuring mechanism, square faceplates and square housings. The instruments can have measuring ranges with a zero mark inside or at the edge of the ranges. The instruments can be manufactured with other measuring ranges and with scales calibrated in units of any physical quantities. M4276 instruments are produced with interchangeable scales, when ordering the letter (c) is added to the instrument designation. The instruments are verified in accordance with the requirements of GOST 8.497-83. The dials and scales of the instruments are made in accordance with Din 43802. M4276 are included in the State Register of Measuring Instruments of the Russian Federation No. 68770-17. Interval of verification is 2 years.

Specifications

Operating temperature range -30...+50 °?

Weight, kg, not more 0,2

Dimensions of the front panel, mm 72x72

Panel cutout, mm 68x68

Accuracy class 1,5

Degree of protection IP Dust protection IP50 (for devices M4276 with "Sea Register" acceptance - IP54)

Current measuring range (direct connection) 0.5 mA; 1 mA; 1.5 mA; 2.5 mA;3 mA; 4 mA; 5 mA; 6 mA; 10 mA; 15 mA; 20 mA; 25 mA; 30 mA; 40 mA; 50 mA; 60 mA; 100 mA; 150 mA; 250 mA; 300 mA; 400 mA; 500 mA; 600 mA; 1 A; 1.5 A; 2 A; 2.5 A; 3 A; 4 A; 5 A; 6 A; 10 A

Current measurement range (connection with 75 mV external shunt and a pair of 0.035 ohm calibrated wires) 15 A; 20 A; 25 A; 30 A; 40 A; 50 A; 60 A; 75 A; 100 A; 150 A; 200 A; 250 A; 300 A; 400 A; 500 A; 600 A; 750 A; 1 kA; 1.5 kA; 2.5 kA; 4 kA; 6 kA; 10 kA; 15 kA

Current measurement range (connection with 150 mV external shunt and a pair of 0.035 ohm calibrated wires) 200 A; 600 A; 1 kA; 2 kA; 3 kA; 4 kA; 5 kA; 6 kA; 8 kA; 10 kA; 15 kA; 20 kA; 30 kA

Voltage measuring range (direct connection) 1 IN; 1.5 IN; 2.5 IN; 4 IN; 6 IN; 10 IN; 15 IN; 25 IN; 40 IN; 60 IN; 100 IN; 150 IN; 250 IN; 300 IN; 400 IN; 500 IN; 600 IN

Voltage measuring range (connection with external additive resistance with nominal current of 1 mA) 1 kV; 1,5 kV; 2,5 kV; 2,5 kV; 3 kV; 4 kV; 6 kV; 10 kV; 15 kV

Scale length, mm, not less 57

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
