Microammeters, millivoltmeters of direct current panel M4273M
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description

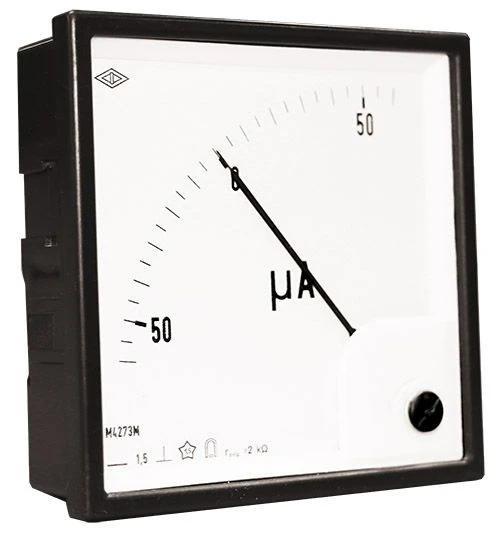

The M4273M instruments are designed to measure current and voltage in DC circuits. The instruments have an angular arrangement of the measuring mechanism, square faceplates and square housings. The instruments can have measuring ranges with a zero mark inside or at the edge of the ranges. The instruments can be manufactured with other measuring ranges and with scales calibrated in units of any physical quantities. Instruments are verified in accordance with the requirements of GOST 8.497-83. The dials and scales of the instruments are made in accordance with Din 43802. M4273M are included in the State Register of measuring instruments of the Russian Federation No. 37282-17. Interverification interval is 2 years.
Specifications
Dimensions of the front panel, mm
96x96
Panel cutout, mm
92x92
Accuracy class
1,5
Degree of protection IP
Dustproof IP50
Weight, kg, not more
0,28
Operating temperature range
-30...+50 °?
Current measuring range (direct connection)
40 µA; 60 µA; 100 µA; 150 µA; 250 µA; 400 µA; 600 µA
Voltage measuring range (connection with a pair of 0.035 ohm calibrated wires)
25 mV; 40 mV; 60 mV; 100 mV; 150 mV; 250 mV; 400 mV; 600 mV
Scale length, mm, not less
93
