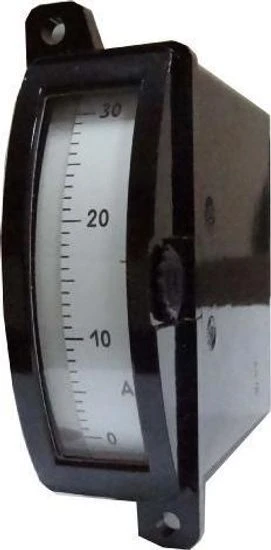

Microammeters, milliammeters, ammeters, DC voltmeters panel M42201

Panel Analog Measuring Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Devices M42201 are designed to measure current and voltage in DC electric circuits and are used in various industries. The devices are used in shields, mosaic panels and small-sized equipment. DC instruments can be manufactured with a zero mark at the edge or inside the measuring range. Instrument scales can be made in any unit of measurement, with special marks, inscriptions, etc. according to the customer's data. The dials and scales of the instruments are made in accordance with GOST 5365. Instruments can be manufactured for horizontal or vertical installation with the appropriate location of the instrument scale. Instruments with other measuring limits can be manufactured on request. The instruments are verified in accordance with the requirements of GOST 8.497-83. M42201 are included in the State Register of measuring instruments of the Russian Federation No. 37622-17. Interverification interval is 2 years.

Technical Specifications

Dimensions of the front panel, mm	74x26
Panel cutout, mm	60,5?24,5
Accuracy class	1,5; 2,5
Degree of protection IP	Dustproof IP50
Weight, kg, not more	0,20
Measuring range (direct connection)	µA - 100; 150; 200; 250; 300; 400; 500; 600; 750; 1000; mA - 1; 5; 10; 15; 30; 50; 100; 150; 300; 500; 600; A - 1; 2; 3; 5; 10; V - 2; 3; 7,5; 10; 15; 30; 50; 75; 100; 150; 250; 300; 450; 500; 600
Measuring range (connection with 75 mV external shunt, 0.035 ohm pair of calibrated wires)	? - 20; 30; 50; 75; 100; 150; 200; 300; 500; 750; 1000; 1500; 2000; 3000; 4000; 6000
Scale length, mm, not less	40
Measuring range (connection with 100 mV external shunt, 0.035 ohm pair of calibrated wires)	? - 7500; 10000; 12500; 15000
Measuring range (connection with external additive resistance with nominal current 5 mA)	? - 1000; 1500; 3000
Operating temperature range	-50...+60 °?

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
