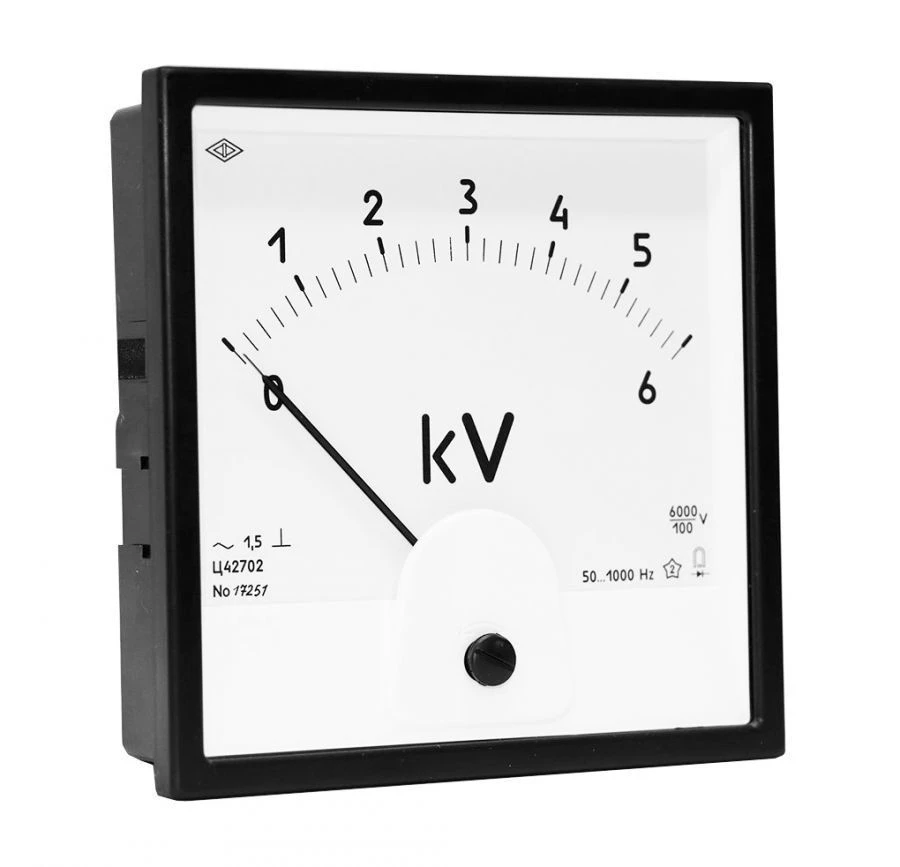

Panelboard microammeter, milliammeter, ammeter and voltmeter: version Ts42702

Panel Analog Measuring Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Shield instruments Ts42702 are produced by magneto-electric system with rectifier and are designed for measuring alternating current and voltage. Ammeters and voltmeters are manufactured with a zero mark at the edge of the range. The instruments can be manufactured with scales in any unit of measurement. The dials and scales of the devices are made in accordance with GOST 5365. The degree of protection of the front panel is IP50 (for instruments with "Sea Register" acceptance - IP54), the degree of protection of current-carrying rods is IP00. Verification of the devices is performed in accordance with the requirements of GOST 8.497-83. Ts42702 are included in the State Register of Measuring Instruments of the Russian Federation No. 69582-17. Interverification interval - 2 years.

Technical Specifications

Dimensions of the front panel, mm	120x120
Panel cutout, mm	112x112
Scale length, mm, not less	Flat grinder, Specialised grinder
Accuracy class	1,5
Degree of protection IP	Dust shield IP50 (for devices with "Sea Register" acceptance - IP54)
Weight, kg, not more	0,35
Operating temperature range	-40...+50 °?
Upper limit of the measuring range (direct connection)	mA (10; 20; 30; 50; 100; 250; 500); V (15; 30; 50; 75; 75; 100; 150; 250; 300; 400; 500; 600)
Upper limit of the measuring range (connection via voltage transformer with secondary voltage 100 V)	V (450; 500; 600; 750); Transformation ratio (0-450V - 380/100; 0-500V - 500/100; 0-600V - 500/100; 0-750V - 750/100)
Upper limit of the measuring range (connection via voltage transformer with secondary voltage 100 V)	kV (3,5; 4; 6; 7,5; 12,5; 15; 17,5; 20; 25; 40; 125; 150; 175; 200; 250; 400; 600); Transformation ratio: 0-3,5kV - 3000/100; 0-4kV - 4000/100; 0-6kV - 6000/100; 0-7,5kV - 6000/100; 0-12,5kV - 10000/100; 0-15kV - 13800/100; 0-17,5kV - 15750/100; 0-2

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
