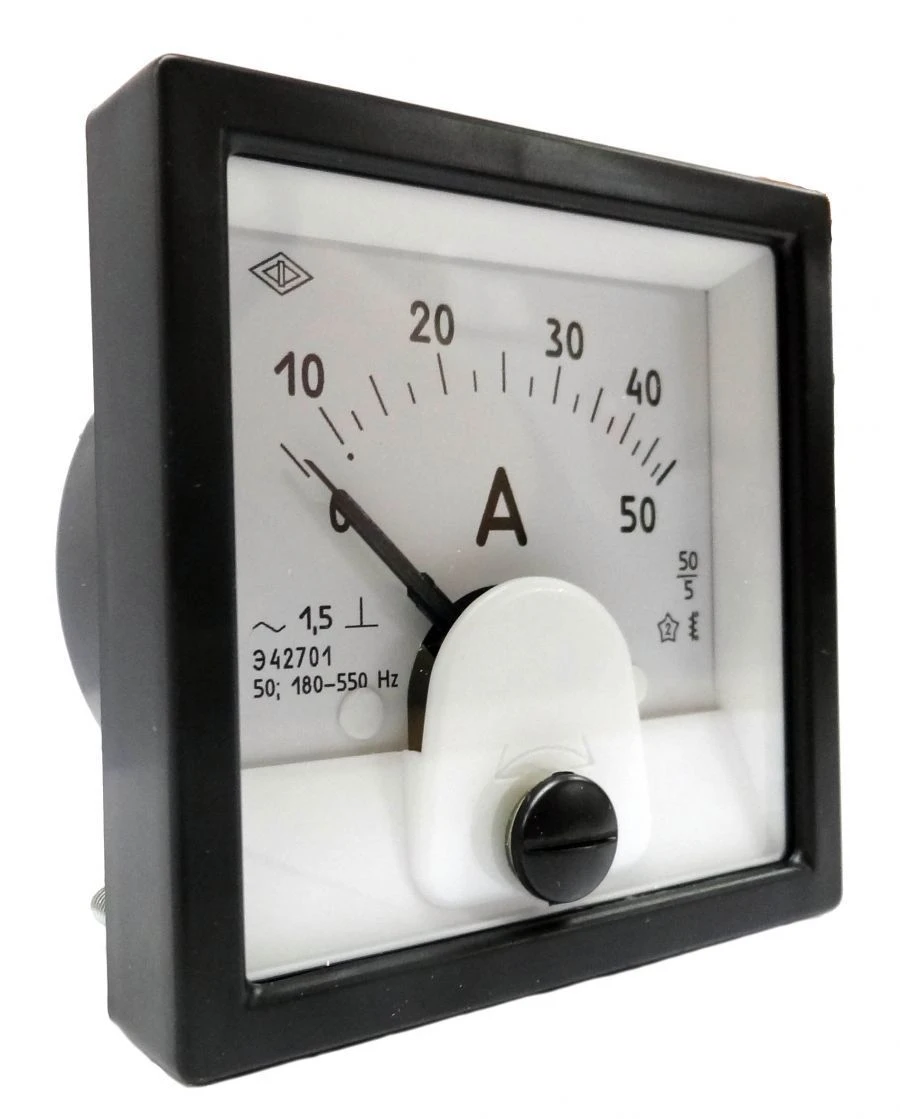

Microammeter, milliammeter, ammeter and voltmeter panel-mounted: version E42701.

Panel Analog Measuring Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Shield instruments E42701 are produced by electromagnetic system and are designed for measuring alternating current and voltage. Ammeters and voltmeters are manufactured with a zero mark at the edge of the range. The instruments can be manufactured with scales in any unit of measurement. The dials and scales of the devices are made in accordance with GOST 5365. The degree of protection of the front panel is IP50 (IP54 for instruments with "Sea Register" acceptance), the degree of protection of current-carrying rods is IP00. Verification of the devices is performed in accordance with the requirements of GOST 8.497-83. E42701 are included in the State Register of Measuring Devices of the Russian Federation No. 69582-17. Interverification interval is 2 years.

Specifications

Dimensions of the front panel, mm 60?60

Panel cutout, mm Ø57,5

Accuracy class A - 1,5; 2,5; C - 2,5

Degree of protection IP Dust shield IP50 (for devices with "Sea Register" acceptance - IP54)

Weight, kg, not more 0,2

Operating temperature range -40...+50 °?

Upper limit of current measuring range (direct connection) 1 A; 1,5 A; 2 A; 2,5 A; 3 A; 4 A; 5 A; 6 A; 10 A; 20 A; 30 A; 50 A

Upper limit of current measuring range (connection via current transformer with 5 A secondary current) 5 A; 10 A; 15 A; 20 A; 30 A; 40 A; 50 A; 75 A; 75 A; 80 A; 100 A; 150 A; 200 A; 250 A; 250 A; 300 A; 400 A; 400 A; 500 A; 600 A; 750 A; 800 A; 1 kA; 1.2 kA; 1.5 kA; 2 kA; 3 kA; 4 kA; 5 kA; 6 kA; 8 kA; 10 kA; 20 kA; 30 kA; 40 kA

Upper limit of voltage measuring range (direct connection) 10 V; 30 V; 50 V; 100 V; 150 V; 250 V; 400 V; 500 V; 600 V; 750 V

Upper limit of voltage measuring range (connection via voltage transformer with secondary voltage 100 V) 400 V; 450 V; 500 V; 600 V; 750 V; 3.5 kV; 4 kV; 6 kV; 7.5 kV; 12.5 kV; 15 kV; 17.5 kV; 20 kV; 25 kV; 40 kV; 125 kV; 150 kV; 175 kV; 200 kV; 250 kV; 400 kV; 600 kV

Scale length, mm, not less 44

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
