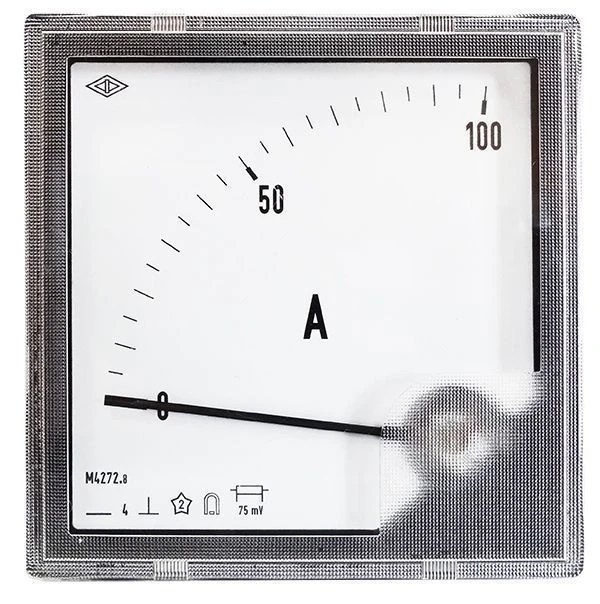

Microammeter, milliammeter, ammeter and panel voltmeter: version M4272.8

Panel Analog Measuring Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

The M4272.8 instruments are designed to measure current in chargers and other DC devices in various industries in temperate climate conditions. The dials and scales of the instruments are made in accordance with Din 43802. M4272.8 are included in the State Register of Measuring Instruments of the Russian Federation. Interverification interval is 2 years.

Specifications

Dimensions of the front panel, mm 96x96

Panel cutout, mm 92x92

Scale length, mm, not less 93

Accuracy class 4,0

Degree of protection IP Dustproof IP50

Weight, kg, not more 0,2

Operating temperature range -30...+50 °?

Measuring range (connection with 75 mV external shunt and a pair of 0.035 ohm calibrated wires) A - 30; 50; 75; 100; 150; 300; 500; 750; kA - 1.5; 3

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
