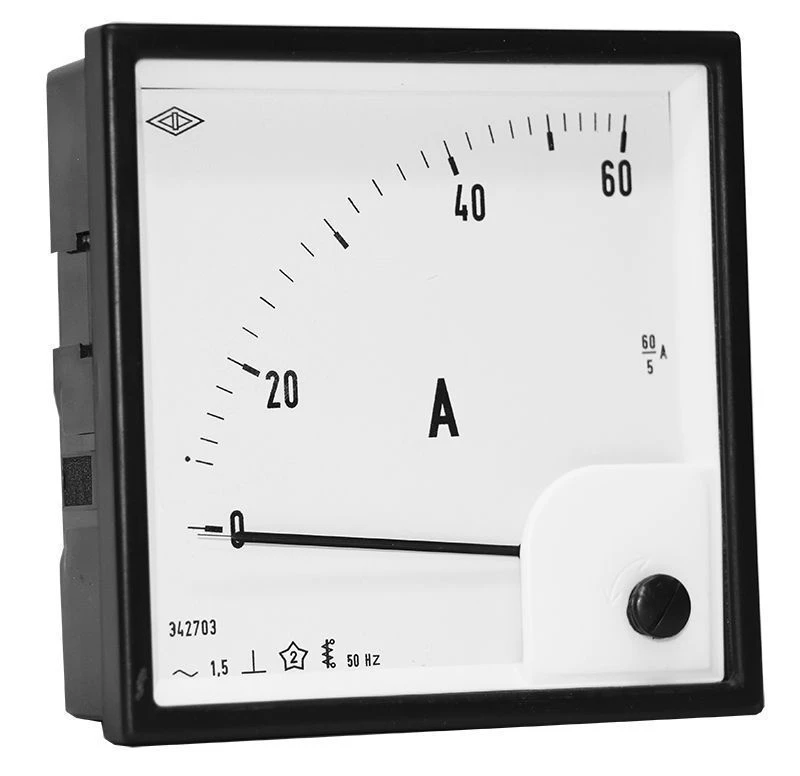

Panelboard microammeter, milliammeter, ammeter and voltmeter: version E42703

Panel Analog Measuring Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

The E42703 instruments are designed to measure current and voltage in AC circuits. Overall and installation dimensions correspond to European standards. The arrangement of the mechanism is angular. The dials and scales of the instruments are made in accordance with Din 43802. The instruments are verified in accordance with the requirements of GOST 8.497-83. E42703 are included in the State Register of Measuring Instruments of the Russian Federation No. 69582-17. Interverification interval is 2 years.

Specifications

Dimensions of the front panel, mm 96x96

Panel cutout, mm 92x92

Scale length, mm, not less 95

Accuracy class 1,5

Degree of protection IP Dustproof IP50 (for devices with "Sea Register" acceptance - IP54)

Weight, kg, not more 0,35

Operating temperature range -40...+50 °?

Upper limit of current measuring range (direct connection) mA (100; 250; 400; 600); A (1; 1.5; 2; 2; 2.5; 3; 4; 5; 6; 10; 20; 30; 50; 100)

Upper limit of current measuring range (connection via current transformer with secondary current of 1 A or 5 A) A (5; 10; 15; 20; 30; 40; 50; 75; 80; 100; 150; 200; 250; 250; 300; 400; 500; 600; 750; 800); kA (1; 1.2; 1.5; 2; 3; 4; 5; 6; 8; 10; 20; 30; 40)

Upper limit of voltage measuring range (direct connection) ? - 10; 30; 50; 100; 150; 250; 400; 500; 600; 750

Upper limit of voltage measuring range (connection via voltage transformer with secondary voltage 100 V) V (400; 450; 500; 600; 750); kV (3.5; 4; 6; 7.5; 12.5; 15; 17.5; 20; 25; 40; 125; 150; 175; 200; 250; 400; 600)

Upper limit of current measuring range for overload ammeter (overload with factor 2) (directly connected) ? - 1; 1,5; 2,5; 3; 4; 5; 6; 10; 15; 20; 30; 50; 100

Upper limit of the current measuring range for overload ammeter (overload with factor 2) (connection via transfor A (5; 10; 15; 20; 30; 40; 50; 75; 80; 100; 150; 150; 200; 200; 250; 300; 400); kA (0.5; 0.6; 0.8; 1; 1.5; 2; 3; 4; 5; 6; 10; 20; 30; 40)

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
