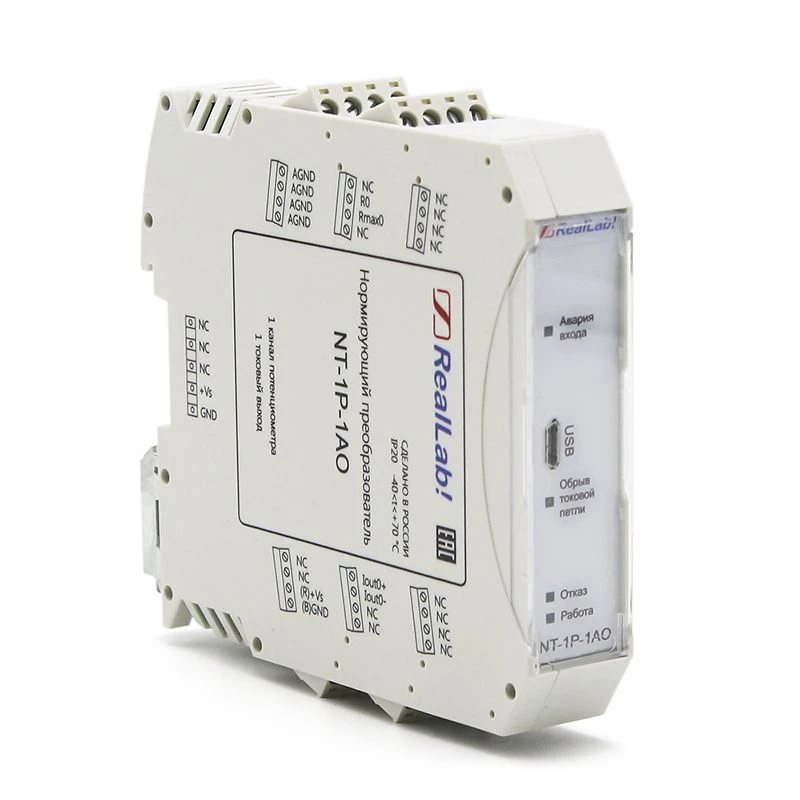

NT-1P-1AO Potentiometer signal conditioning converter

Purpose: conversion of signals from potentiometers and potentiometric sensors in the active current signal 4 ... 20 mAConnection: 1 channel analogue input signals from the linear potentiometer or potentiometric sensor with a nominal resistance of 1 ohm to 10 kOhm; 1 channel analogue current output 4 ... 20 mArrangement: 1 channel analogue output 4 ... 20 mA.20 mARasignificance: 16 digits (ADC), 12 digits (DAC)Conversion error: not more than 0,1 %Time of establishment of the output signal after a jump change of the input signal:not more than 0,2 sGalvanic isolation: input, output, power supply - 2500VTemperature: operating temperature range from -40C to +70CConfiguration: via USB port, NTConfig softwarePower supply voltage: from 10 to 30VPower consumption: no more than 2.2WDimensions (HxWxG): 109x22.5x113Warranty: 18 months
