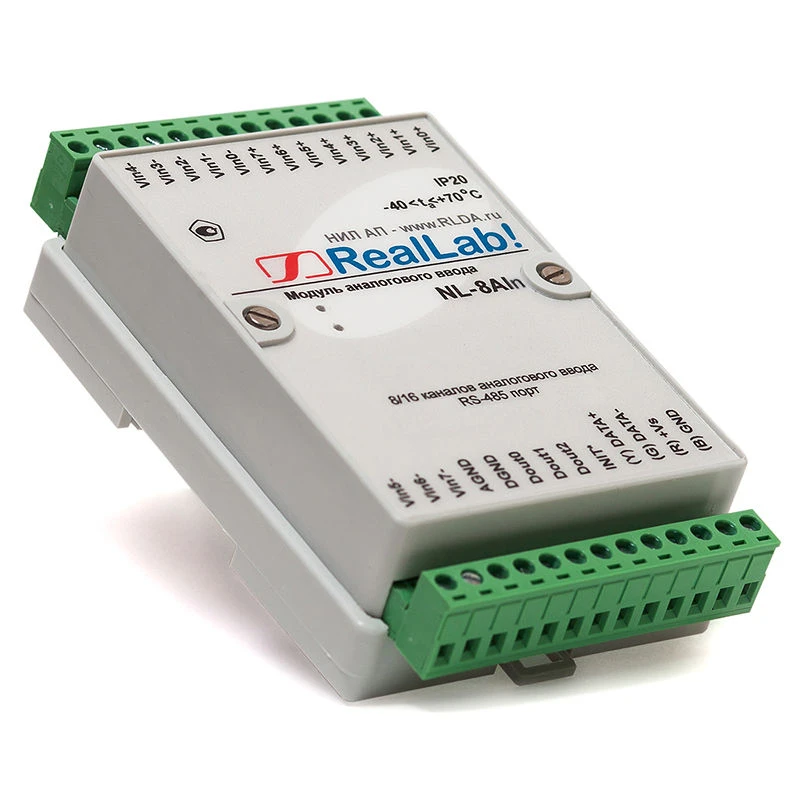

NL-8AIn Universal analogue input module

Purpose: for voltage or current measurement Connection: 16 single or 8 differential analogue input channels with software-settable ranges 150 mV, 500 mV, 1 V, 5 V, 10 V, 25 mA Measurement error: not more than 0,1 % Digit capacity: 16 digits (ADC) Measurement ranges: independent setting of measurement ranges for each channel ADC sampling frequency: 10 Hz, 28 Hz (default), 200 Hz Polling time of one channel: (set by software) 100 ms, 35 ms (default), 5 ms Galvanic isolation: galvanic isolation voltage 2500 V Temperature: operating temperature range from -40 to +70 C Connection interface: RS-485 interfaceProtocols: DCON and MODBUS RTU Power supply: from 10 to 30 V Power consumption: not more than 1.0 W Mounting: DIN-rail mounting OKPD2 Code: 26.51.43.117 Dimensions (H x W x D): 123x76x33 mm Warranty: 18 months
