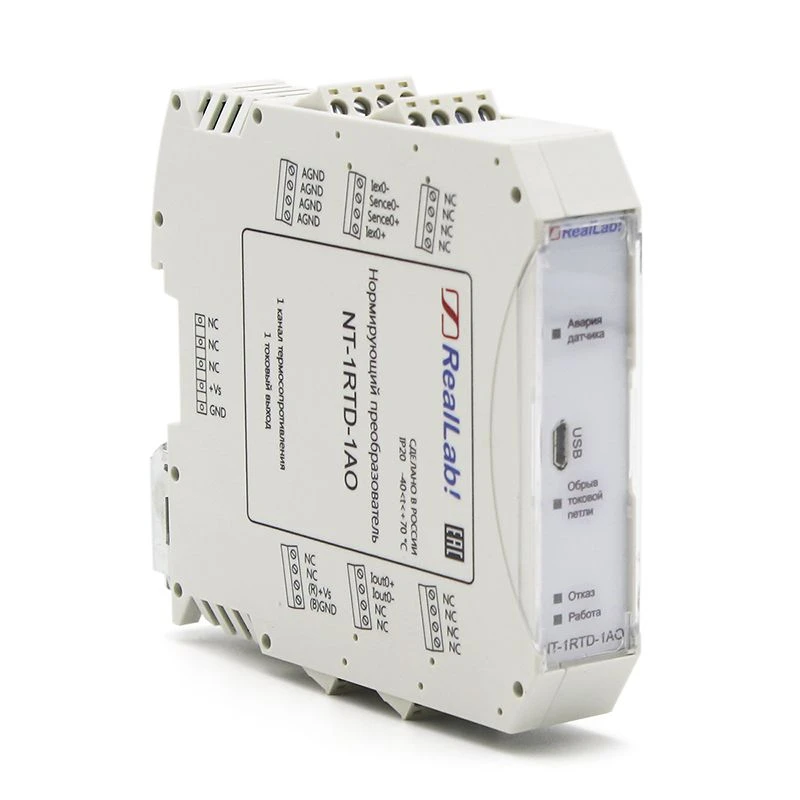

NT-1RTD-1AO Thermal resistance signal conditioning converter

Purpose: conversion of signals of thermal resistance converters (thermistors) into active current signal 4... 20 mA.20 mAconnection: 1 channel of analogue input of signals of thermoresistors of types Pt50, Pt100, Pt500, Pt1000, 50P, 100P, 500P, 1000P, Cu50, Cu100, Cu500, Cu1000, 50M, 100M, 500M, 1000M, 100N, 500N, 1000N; 1 channel of analogue current output 4...20 mA connection diagrams: 1 sensor on 4-wire, 3-wire or 2-wire connection schemeDigit capacity: 16 digits (ADC), 12 digits (DAC)Conversion error: basic conversion error not more than 0,1 %Time of setting the output signal after a jump change of the input signal:not more than 0.2 sGalvanic isolation: input, output, power supply - 2500 VTemperature:operating temperature range from -40C to +70CConfiguration: via USB port, NTConfig softwarePower supply voltage: from 10 to 30VPower consumption: not more than 2.2WDimensions (HxWxG): 109x22.5x113Warranty: 18 months
