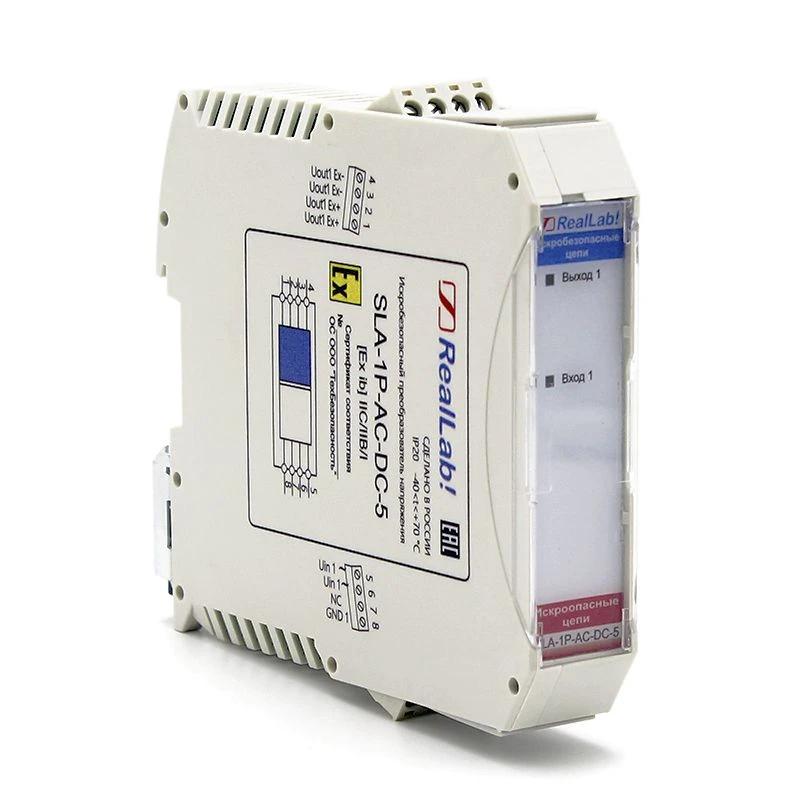

SLA-1P-AC-DC-5 Single-channel intrinsically safe power supply unit
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Purpose: power supply with intrinsically safe circuits for sensors located in intrinsically hazardous area GOST R 51330.10 (IEC 60079-11-99), GOST 30852.10-2002 (IEC 60079-11-99)Type of explosion protection: intrinsically safe electric circuit of level "ib "Explosion protection marking: [Exib]IExplosive mixtures: according to GOST 30852.11-2002 categories I, IIA, IIB/IIC ExibIIBPower supply voltage: ~85-250V, 50HzPower consumption: 4W Output voltage: 5V Load current: up to 200mA Galvanic isolation: 3000V Temperature: -40C to +70CShell protection degree: IP20 (GOST 14254-2015)Design: slot construction Mounting: on DIN-rail Dimensions (HxWxG): 109x22.5x113 mm Weight: not more than 0.2 kg MTBF: 100 000 h Service life:20 years Warranty: 18 months
Specifications
Overall dimensions (HxWxH):
99.4x22.5x109. mm
Weight, not more:
200 g
Average service life, at least
20 a
Average MTBF:
100000
Guarantee:
18
Type of product according to PP RF 616
Other tools and instruments for measurement, inspection and testing
