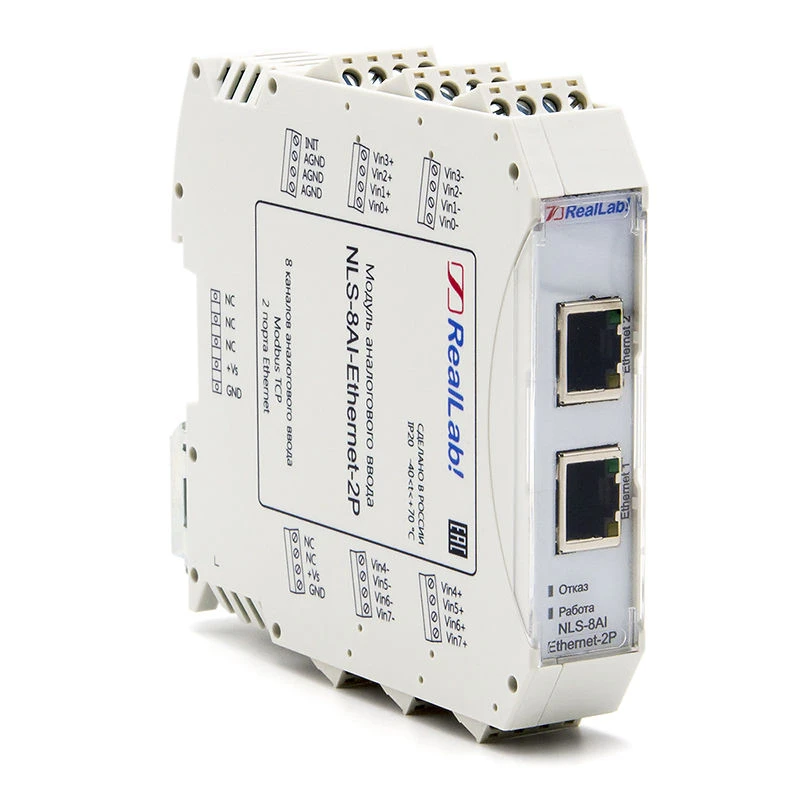

NLS-8AI-Ethernet-2P Universal analogue input module

Purpose: voltage or current measurementConnection: 16 single or 8 differential analogue input channels with software-settable ranges of 150 mV, 500 mV, 1 V, 5 V, 10 V, 25 mA Measurement error: not worse than 0.1 %Digit capacity: 16 digits (ADC)Measurement ranges: independent setting of measurement range for each channelGalvanic isolation: group isolation of analogue inputs (2500 V), Ethernet (1500 V)Bandwidth: 13.1 HzTemperature: -40 to +70 SIInterface connection: 2 Ethernet ports, support for Ethernet Worasss technologyProtocols: Modbus TCP, DHCPEthernet speeds: 10BASE-T/100BASE-TX.Configuration: Web-interface, Modbus TCPPower supply: from 10 to 30VPower consumption: not more than 2.2WDesign: slot design, bus connector for power supplyFixing: mounting on DIN-rail OKPD2 code: 26.51.43.117Dimensions (H x W x D): 109x22.5x113 mmWarranty: 18 months
