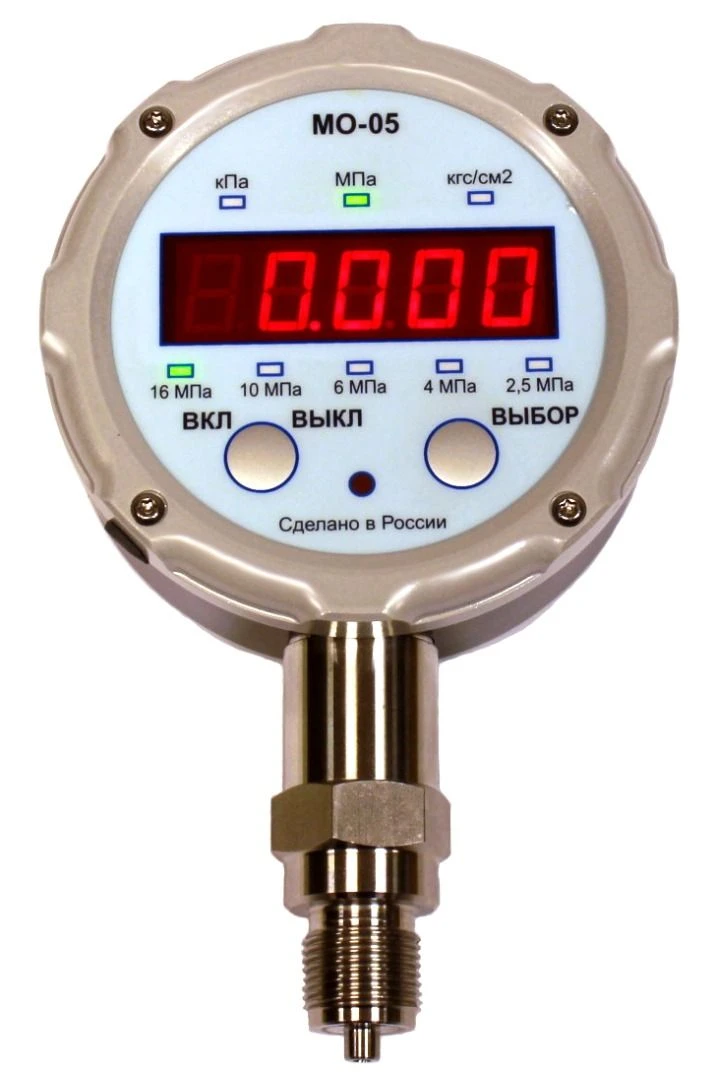

Manometer digital MO-05 reference manometer

Fluid Control Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

MO-05 digital pressure gauges for precise measurements with indication of current measured values on the digital display: gauge pressure of liquids and gases, gas discharge. Field of application in the sphere of state regulation of assurance of uniformity of measurements: transfer of the size of pressure units during verification, calibration and testing of pressure measuring instruments.

Specifications

Type depending on the operating principle Digital

Assignment Exemplary

Type according to the method of measurement information output Showing

Type of pressure to be measured Measurement of gauge pressure; Measurement of vacuum pressure

Tolerance limit of the reduced basic error of pressure measurement on each subrange 0,1; 0,15; 0,25; 0,4 %

Display LED

Climatic version UHL3,1* (+5 ÷ +50°?)

Overpressure (CI) 0-60 MPa

Pressure-dissipation (PD) -0.1-0 MPa

Dustproof IP65

Execution General industrial

Variation of readings 0,5?

Additional error from every 10°C change in ambient temperature ±0,5?

Climatic version UHL3,1* (+5 ÷ +50°?)

Continuous operation time 300

Average MTBF 15000 hours

Threaded connection M20x1.5

Fitting material stainless steel AISI 304

Gauge housing material aluminium alloy D16T

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
