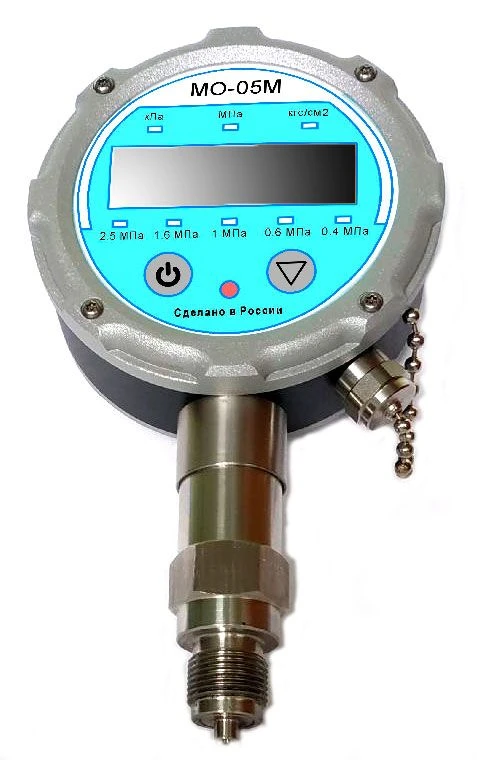

Digital pressure gauge MO-05M Version 3

Fluid Control Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

MO-05M digital pressure gauges for precise measurements with indication of current measured values on the digital display: gauge pressure of liquids and gases, gas discharge. Field of application in the sphere of state regulation of ensuring the uniformity of measurements: transfer of the size of pressure units during verification, calibration and testing of pressure measuring instruments

Technical Specifications

Type depending on the operating principle	Digital
Assignment	Worker
Type according to the method of measurement information output	Showing
Type of pressure to be measured	Gauge pressure measurement; Vacuum pressure measurement; Gauge-vacuum pressure measurement
Basic reduced error	0,02; 0,025; 0,05; 0,1; 0,15; 0,25; 0,4%
Display	LED
Measuring head (MH)	Non-removable
Number of sub-bands	6 pc
Climatic version	- UHL3.1 (-30 ÷ +70 °?); - UHL3.1 (-10 ÷ +70 °?); - UHL3.1 (+5 ÷ +50 °?); - UHL3.1 (+18 ÷ +28 °?) for 0,02 - 0,05% and pressure gauges with ±2 and ±6 kPa.
Overpressure (CI)	From (0 to 0,04) to (0 to 100) MPa
Overpressure-dissipation (ODP)	From (minus 0,0004 to 0,0004) to (minus 0,04 to 0,04) MPa
Pressure-dissipation (PD)	From minus 0,1 to 0 MPa
Dustproof	IP65
Execution	General industrial
Range reconfiguration depth	1:4 to 1:7
Inspection interval	1 year - ±0.02; ±0.025; ±0.05; 2 years - ±0.1; ±0.15; ±0.25; ±0.4 per cent
Warranty period	1 a
UPI (measurement subranges)	±2kPa (±2; ±1.6; ±1; ±0.6; ±0.4), ±6kPa (±6; ±4; ±2.5; ±1.6; ±1), ±40kPa (±40; ±25; ±16; ±10; ±6), 0÷40kPa (40; 25; 16; 10; 6), 0.25MPa (0.25; 0.16; 0.1; 0.06; 0.04; - 0.1), -0.1÷2.5MPa (2.5; 1.6; 1; 0.6; 0.4; - 0.1), 0÷2.5MPa (2.5; 1.6; 1; 0.6; 0.4; - 0.4

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
