Frequency calibrator VCH-313
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description

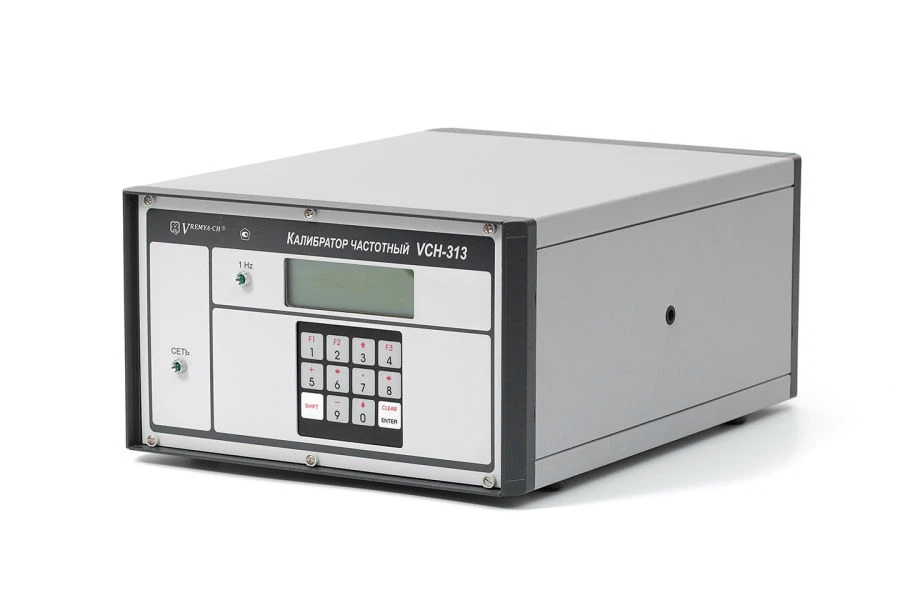

Frequency calibrator VCH-313 is intended for determination of frequency error and calibration of frequency standards of different types by signals of GLONASS/GPS NSA. The main areas of application: - in metrology during verification and calibration; - various kinds of research and development; - synchronisation in telecommunication networks. Frequency calibrator VCH-313 contains a receiver of GLONASS/GPS NSA signals. The calibrator provides the possibility of frequency correction of the calibrated frequency standard in automatic mode and transmission of measured parameters via standard interfaces RS-232C and USB. Control - by means of an interactive digital front panel.
Specifications
Electrical resistance of insulation of mains power supply circuits in relation to the case in normal conditions shall not be min
20000000 ohm
Electrical insulation resistance of mains power supply circuits relative to the case at elevated ambient temperature in
5000000 ohm
Electrical insulation resistance of mains power supply circuits relative to the case at high humidity should not be
2000000 ohm
Power consumed by the device from AC mains at nominal voltage
25
Average time to restore an appliance to working order
2
Holding time at maximum reduced temperature (-50 degrees Celsius)
24
Holding time in the cold chamber at a lower working temperature (+5 degrees Celsius).
2
Holding time under normal application conditions after removing the instrument from the chamber
6
Holding time at maximum elevated temperature (+50 degrees Celsius)
24
Curing time at working elevated temperature (+40 degrees Celsius)
2
