S50244 Vector circuit analysers

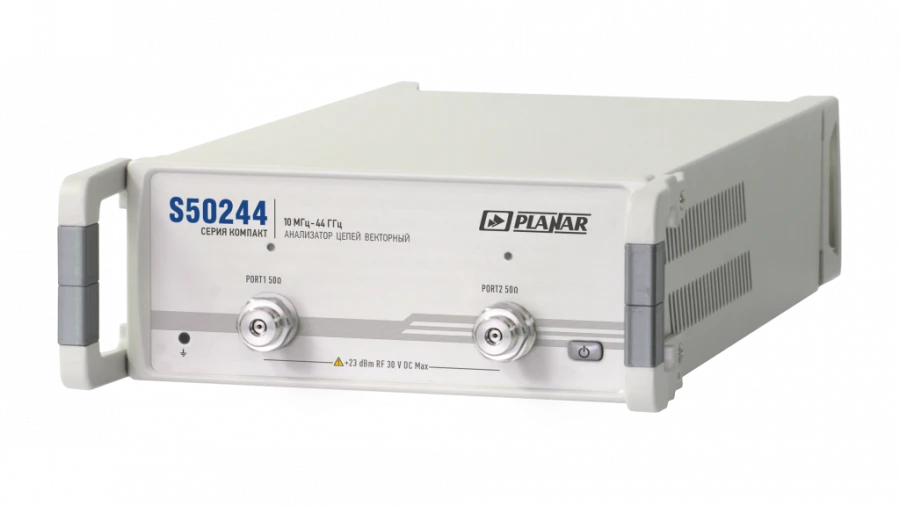

S50244 is a two-port bidirectional vector circuit analyser operating in the frequency range from 10 MHz to 44 GHz. The S50244 vector circuit analyser combines in one housing a test and heterodyne signal generator, output power control attenuator, switch (test signal propagation direction switch), measurement sections, multichannel receiver, control unit with signal processor and power supply. The small size of the instrument housing is combined with excellent dynamic range, high measurement speed and maximum software functionality to solve most real-world measurement tasks. Measurement parameters S11, S21, S12, S22. Simulation mode (demo) software is also available for this model.
