C1220 Vector circuit analysers

Electrical Testing Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

The Cobalt series are fast, wide-range and configurable circuit analysers, providing the ability to measure S-parameters of devices in the microwave range with high accuracy.

Measured parameters:
S-parameters - complex transmission and reflection coefficients (scattering matrix elements) of multipoles;
input resistance and conductivity, pass resistance and conductivity, inverse S-parameters;
absolute signal power at the input of the reference and measuring receiver of each port.

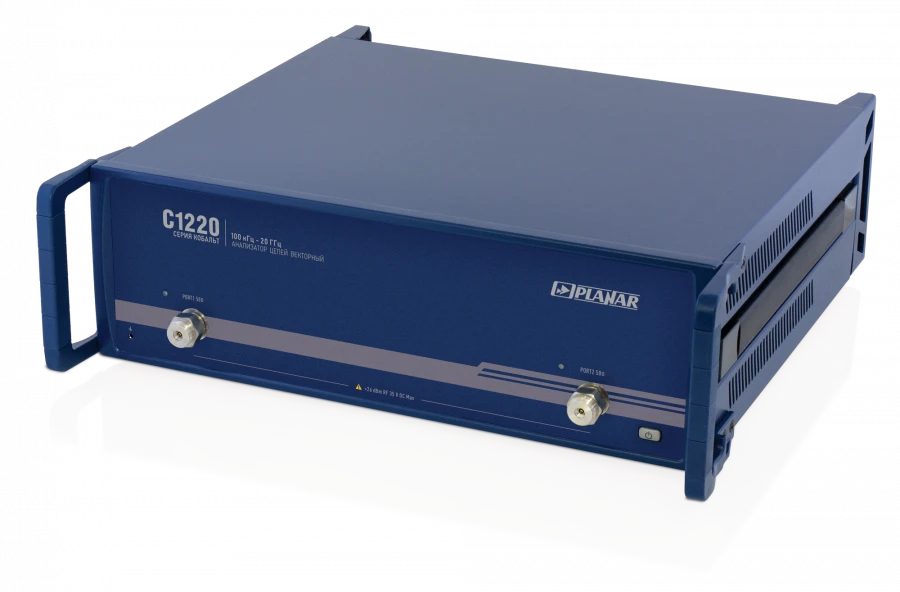

The C1220 is the base model of the Cobalt series analyser with an operating frequency range of 100 kHz to 20 GHz.

A simulation mode (demo) of the software is available for all models of the series.

Specifications

Number of ports 2 pc

Minimum measurement time at one frequency, µs B1/B8 2100/900 MHz

RMS of trace when measuring modulus of transmission coefficient and reflection at filter bandwidth of 3 kHz, dB 0.001

Intermediate frequency filter bandwidth, Hz 1...1000000

Maximum number of points per scan 500001 pc

Operating frequency range, MHz 0.1...20000

Dynamic range, dB 145

Output power level setting range, dBm -60...10

Measurement range of the reflection modulus 0-1

Measuring range of transmission modulus, dB -123...10

Software availability S2VNA

Interface USB

View laboratory

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
