Frequency Range Expansion Module TFE1854 for Enhanced Measurement Applications

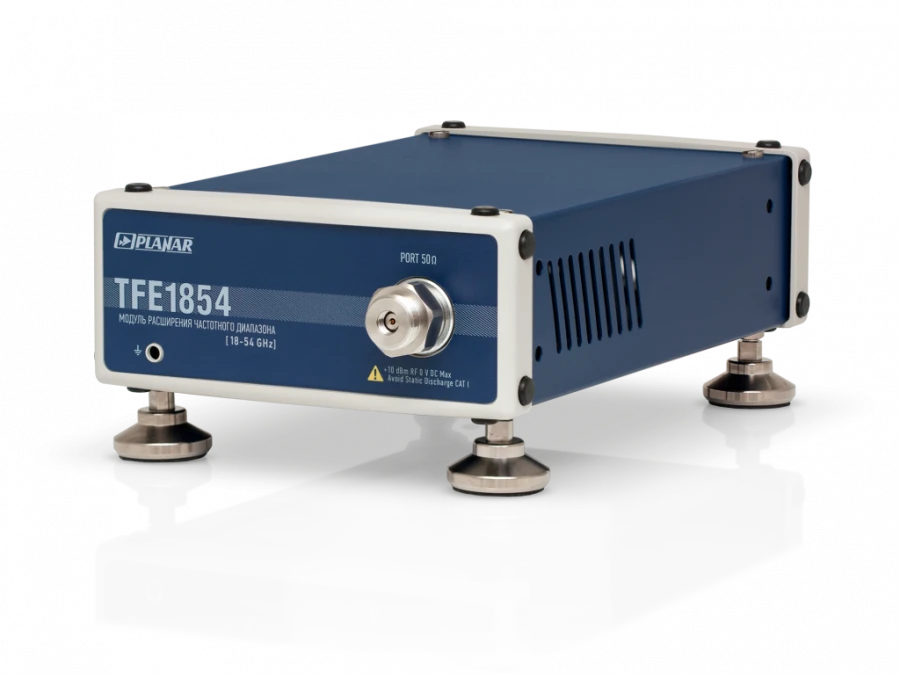

The TFE1854 frequency range expansion module works together with the Cobalt series vector circuit analysers to form a measurement system for complex transmission and reflection coefficients in the extended frequency range. It is an ultra-compact device. The TFE1854 module consists of the following basic elements: frequency multipliers for the measurement and heterodyne signals, a broadband power amplifier with automatic regulation, directional taps and frequency converters. The system is controlled by the analyser software. Stand-alone operation is not provided, the module cannot be used for measurements without connection to the analyser.
