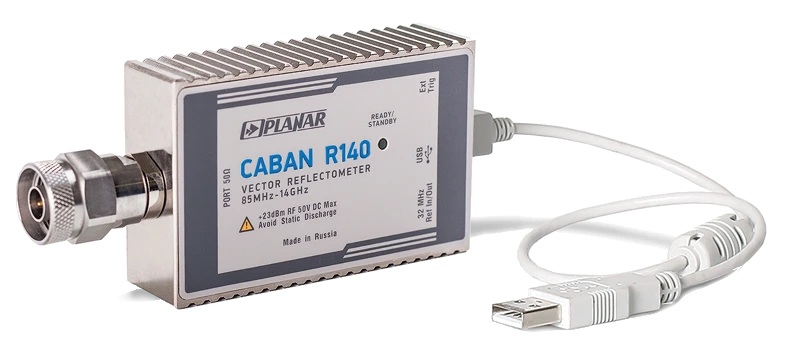

R140 CABAN series vector reflectometers

888>R140 is a single port vector circuit analyser, otherwise known as a vector OTDR, of the CABAN series with an operating frequency range of 85 MHz to 14 GHz. The CABAN series are fast, portable and wide-range OTDRs (single-port vector circuit analysers) that provide the ability to measure S-parameters of devices in the microwave range with high accuracy. CABAN series OTDRs provide the possibility of simultaneous connection of the same name models to the same control software. Measured parameters: S-parameters - moduli of transmission coefficients (in case of simultaneous connection of several OTDRs) and complex reflection coefficients; input impedance and conductivity, pass resistance and conductivity, inverse S-parameters; absolute signal power at the input of the reference and measurement receiver of each port. A simulation mode of operation (demo) software is available for all models in the series.
