C2220 Vector circuit analysers

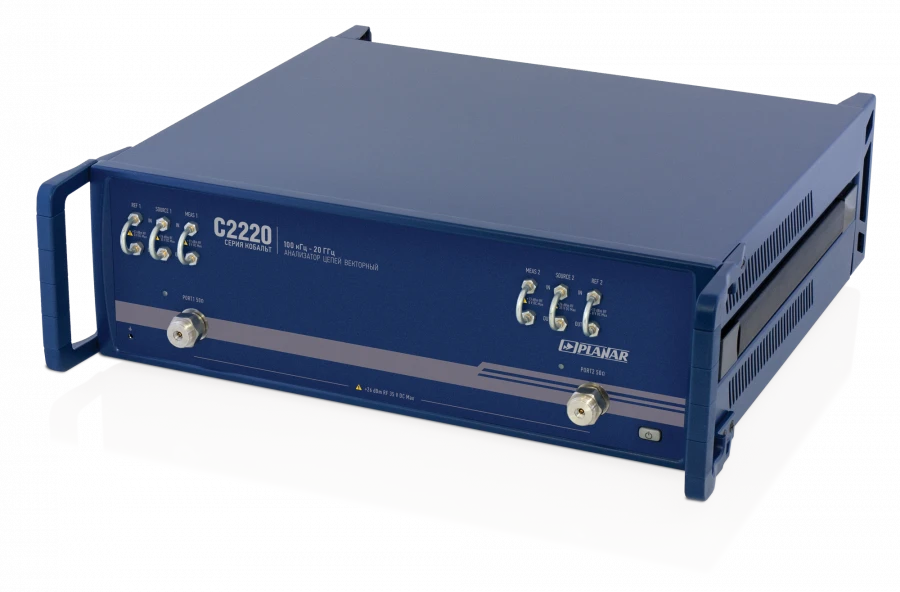

The C2220 is a two-port Cobalt Series vector circuit analyser with an operating frequency range of 100 kHz to 20 GHz and jumpers for direct access to the receivers.
The Cobalt Series are fast, wide-range and configurable circuit analysers that provide the ability to measure S-parameters of devices in the microwave range with high accuracy. Measured parameters: S-parameters - complex transmission and reflection coefficients (scattering matrix elements) of multipoles; input resistance and conductance, pass resistance and conductance, inverse S-parameters; absolute signal power at the reference and measurement receiver input of each port. A simulation mode of operation (demo) software is available for all models in the series.
