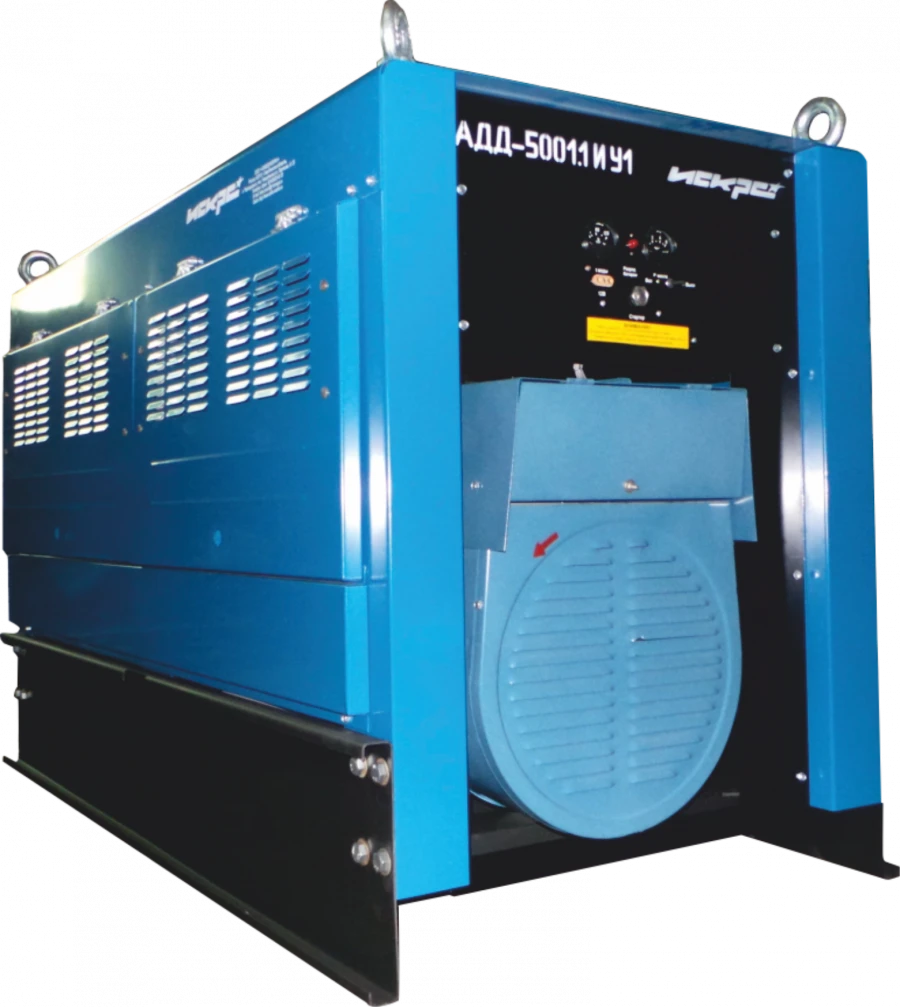

Aggregate for power supply of welding station ADD - 5001.1 AND U1

Electric Soldering & Welding Machines

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

The unit is designed to supply one welding station for manual arc welding, cutting and surfacing of metals with direct current.
The unit allows welding with electrodes with any type of coating, as the power is supplied from a source of direct current, which is a generator inductor type with rectification of current, efficiency of 70%.
It is designed to work outdoors in field conditions. Nominal parameters of the unit refer to its operation at an altitude of not more than 1000m above sea level, ambient air temperature from +40°C to -45°C and relative humidity (monthly average) up to 80% at +15°C. .

Technical Specifications

Rated welding current	500 A
Rated operating voltage	40 V
Welding current control limits	75...530 A
No-load voltage, not more	Flat grinder, Specialised grinder V
Nominal welding cycle time	5
Load duration, PU	60 %
Engine model	?-242
Motor power	6 kW
Rotational speed	1800
Cooling system	Closed type with forced coolant circulation
Summer fuel	DT-L-40-K2
Winter fuel	DT-Z-minus 35-K2
Hourly fuel consumption of the engine in nominal operation mode, not more than	0.00142
Fuel tank capacities	60 l
Unit weight without accessories	880 kg
Length	1800 mm
Width	920 mm
Height	1150 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
