Contact Welding Machine MSh-2203 UHL4 for Seam Welding Applications

Electric Soldering & Welding Machines

Manufacturer: UZSNGU "ISKRA" LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

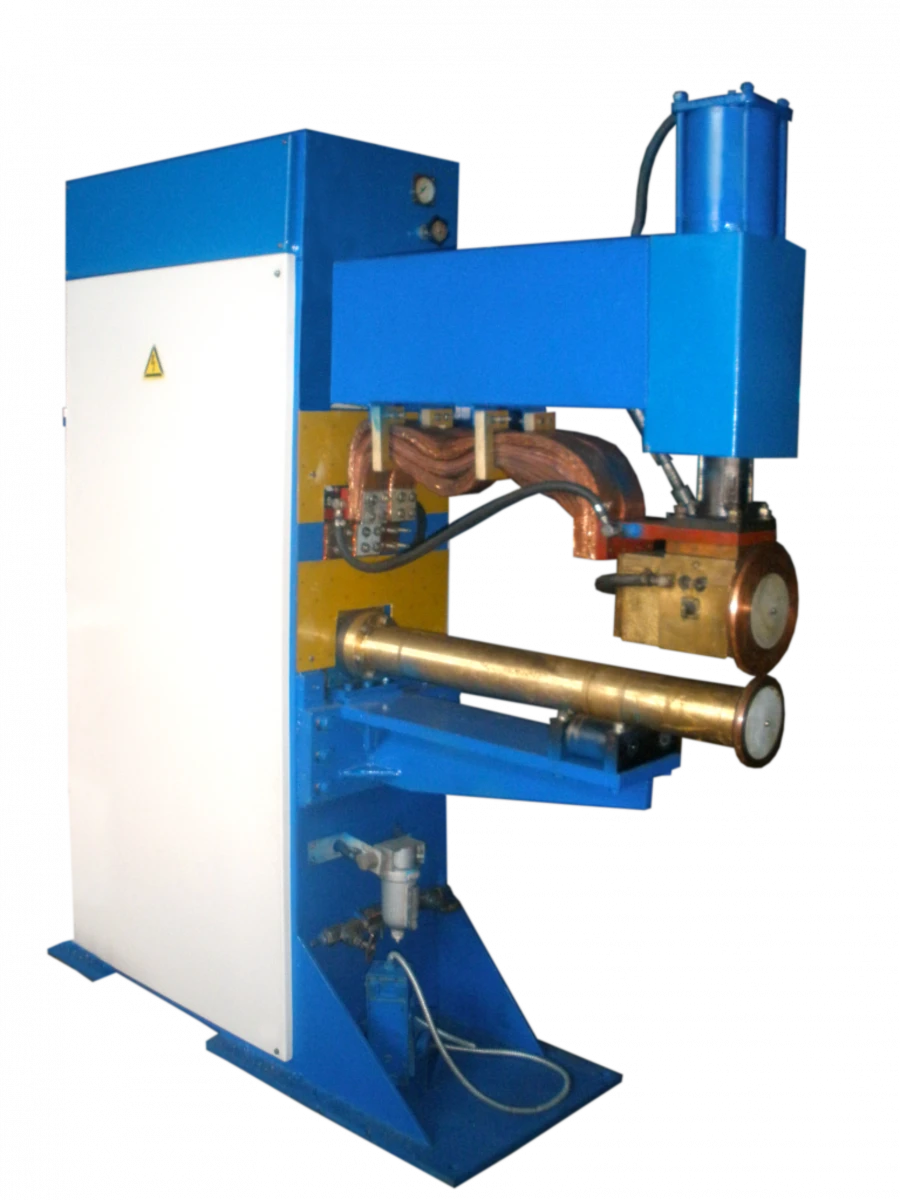

Machine contact welding MSH-2203 UHL4 is designed for seam welding of products from low-carbon and alloyed steels without coatings both in repeated-short-term mode and in continuous passage of welding current. The machine uses a universal rotary conductive device with a replaceable lower trunk. This design of the conductive device provides welding of longitudinal and transverse seams.

The machine is designed for operation in the following conditions: ambient temperature from +1°C to 35°C, ambient humidity up to 80% at +25°C, atmospheric pressure from 84.0 kPa (630mmHg) to 106.7 kPa (800mmHg). Category 4 provides for operation of the machine in closed heated (cooled) and ventilated rooms.

Specifications

Rated mains voltage, at 50 Hz frequency

380 V

Highest secondary current

22±2,2

Highest short circuit power, not more than

112

Number of phases for machine connection

Rated continuous secondary current

Rated operating mode, SP

SBVVBG %

Rated power at 50 per cent SP=50 per cent

Welded parts thickness range

from 0,5+0,5 to 2,0+2,0

Highest electrode compression force at compressed air pressure of 490 kPa

6350±510

Smallest electrode compression force at compressed air pressure of 98 kPa

1650±130

Nominal outreach

400 mm

Nominal solution

85 mm

Full stroke of the upper electrode

65 mm

Nominal diameter of upper drive roller

200 mm

Productivity at welding of minimum thickness, not less than

137

Monitoring and control system or degree of equipment with monitoring and control systems

On integrated circuits

Length

1370 mm

Width

500 mm

Height

1810 mm

Weight

760 kg

Cooling water flow rate, not less than

680

Resistance of secondary circuit to direct current, not more than

SBVVBG

Maximum short-term productivity when welding 0.8 mm+0.8 mm mild steel.

Linear welding speed on roller electrodes of nominal diameter, the smallest, not more

0.4

Linear speed of welding on roller electrodes of nominal diameter, the highest, not less than

Rated electrode compression force at 380 kPa compressed air pressure

5000

Number of adjustment steps

Specific energy consumption

1.02

Maximum continuous output for welding 0.8 mm+0.8 mm thick mild steel

2.3

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
