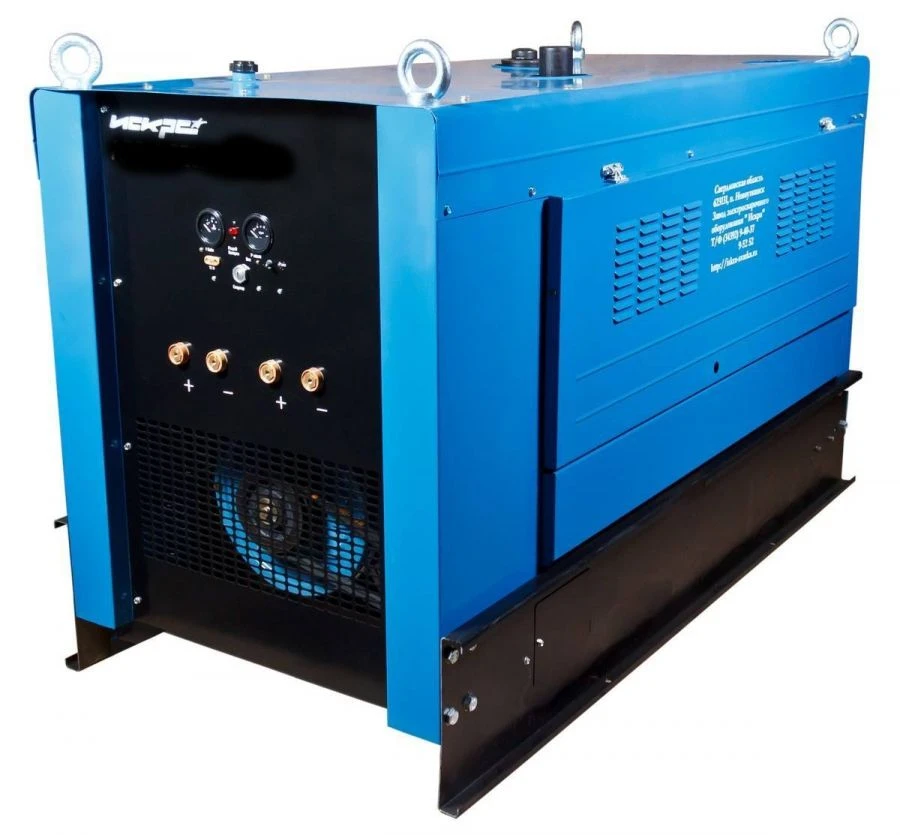

Aggregate for power supply of welding station ADD - 5001 And U1
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
The unit is designed to supply one welding station for manual arc welding, cutting and surfacing of metals with direct current.
The unit allows welding with electrodes with any type of coating, as the power is supplied from a source of direct current, which is a generator inductor type with rectification of current, efficiency of 70%.
It is designed to work outdoors in field conditions. Nominal parameters of the unit refer to its operation at an altitude of not more than 1000m above sea level, ambient air temperature from +40°C to -45°C and relative humidity (monthly average) up to 80% at +15°C. .
The unit allows welding with electrodes with any type of coating, as the power is supplied from a source of direct current, which is a generator inductor type with rectification of current, efficiency of 70%.
It is designed to work outdoors in field conditions. Nominal parameters of the unit refer to its operation at an altitude of not more than 1000m above sea level, ambient air temperature from +40°C to -45°C and relative humidity (monthly average) up to 80% at +15°C. .
Specifications
Rated welding current
500 A
Rated operating voltage
40 V
No-load voltage, not more
Flat grinder, Specialised grinder V
Welding current control limits
75...530 A
Nominal welding cycle time
5
Load duration, PU
60 %
Engine model
?144
Motor power
44 kW
Rotational speed
2000
Engine cooling
Air
Summer fuel
?-0,2-40
Winter fuel
Z-0.2 minus 35
Hourly fuel consumption in nominal operation mode, not more than
0.00122
Fuel tank capacity
60 l
Unit weight without accessories
750 kg
Length
1925 mm
Width
950 mm
Height
1200 mm
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
