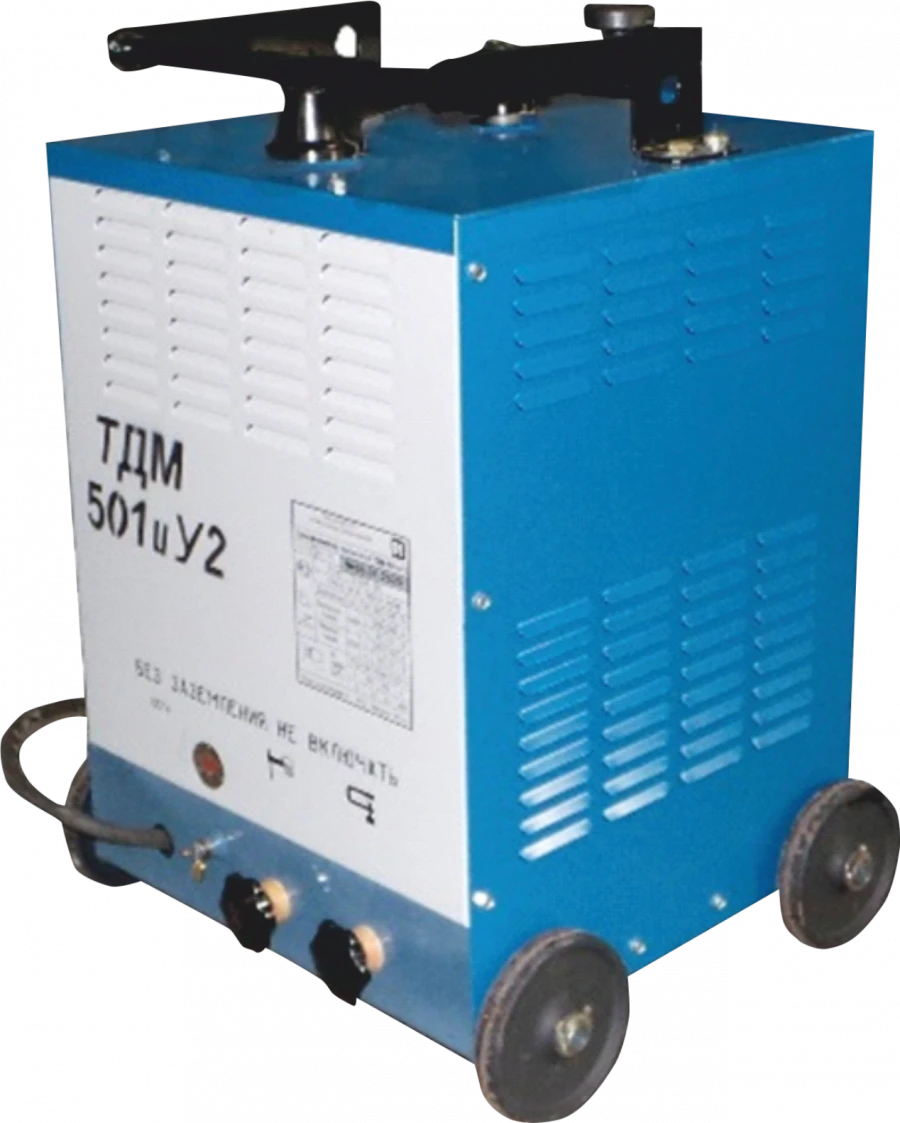

Single-phase transformer TDM-501 U2

Electric Soldering & Welding Machines

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Single-phase transformer TDM-501 U2 with falling external characteristics is used to supply one welding station with alternating current with frequency 50 Hz at manual arc welding, cutting and surfacing of metals with covered metal electrodes.
Climatic design of the transformer is U, placement category 2.
The transformer is designed for operation in areas with temperate climate in the open air under a canopy under the following conditions:
-height above sea level not more than 1000 m;
- ambient temperature from - 40°C to + 40°C;
-relative air humidity not more than 80% at temperature +15°C.

Technical Specifications

Rated supply voltage	380 V
Frequency	SBVVBG
Power consumption, max.	5 kW
Rated welding current	500 A
Small welding current control limits in the range of	100...280 A
Large welding current control limits in the range of	260...560 A
Primary current, design current	84 A
No-load voltage of high currents in the range of	64 V
No-load voltage of small currents in the range of	80 V
Rated operating voltage	40 V
Rated load duration, PU	40 %
Welding cycle time	5
Efficiency factor, not less than	85 %
Degree of protection	IP22
Insulation class	?
Total average transformer service life, not less	5 a
Length	585 mm
Width	555 mm
Height	850 mm
Weight, not more	140 kg
Class according to the method of protection of a person against electric shock	1

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
