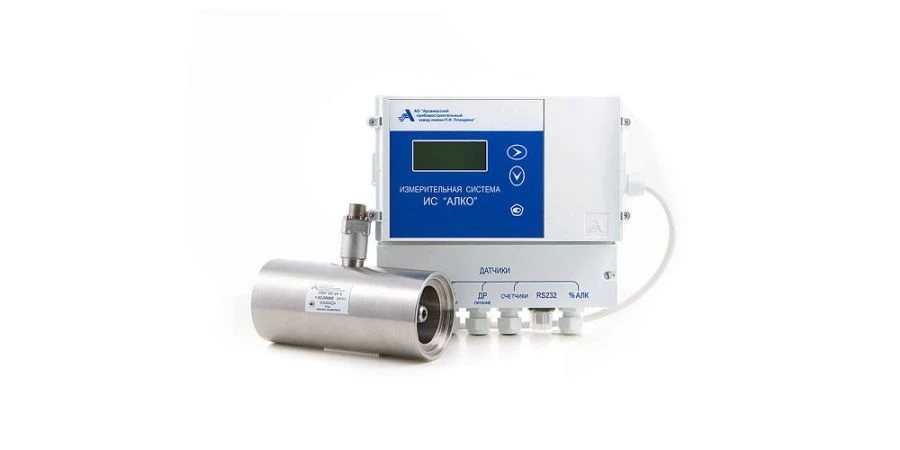

Measuring system ALKO-3M

Fluid Measurement Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

The system is designed for automatic accounting of alcohol, distillate, vodka and water-alcohol solutions during their production, shipment and receipt (including bottling lines), as well as for the formation and transfer of information to the unified state automated system for accounting the volume of production and turnover of ethyl alcohol and alcohol-containing products (EGAIS). The system complies with the technical conditions approved by the order of Rosalkogolregulirovanie ? 74 of 24.03.15. The system includes: a specialised computer, communication controller, turbine helicoidal flow converter, optical alcohol meter or density meter, platinum resistance thermocouple, universal bottle counter or control module for counting the number of bottles that have passed through the control zone of the counter. Interverification interval: 1 year. Warranty period of operation: 12 months from the date of commissioning.

Technical Specifications

Meter type	Stationary
Ambient temperature: TPRG (climatic version UHL2 according to GOST 1515069); TPS (climatic version UZ); PLOT-3S-M	-30...+35 degrees Celsius
Rated flow rate (l/s)	DN TPRG 12mm: 0,225; DN TPRG 20mm:1,25; DN TPRG 32mm: 3; DN TPRG 40mm: 5; DN TPRG 50mm: 8; DN TPRG 80mm: 20; DN TPRG 100mm: 30
Minimum flow rate (l/s)	DN TPRG 12mm: 0,05; DN TPRG 20mm: 0,16; DN TPRG 32mm: 0,4; DN TPRG 40mm: 0,6; DN TPRG 50mm: 0,8; DN TPRG 80mm: 2,0; DN TPRG 100mm: 3,0.
Maximum flow rate (l/s)	DN TPRG 12mm: 0,45; DN TPRG 20mm:2,5; DN TPRG 32mm: 6,0; DN TPRG 40mm: 10; DN TPRG 50mm: 16; DN TPRG 80mm: 40; DN TPRG 100mm: 60
Strength measurement range	Alcoholometer "Ikonat-VS-P "1: 38-60%; Alcoholometer "Ikonat-VS-P "2: 85-97%; Alcoholometer "Ikonat-VS-P "3: 50-97%; Alcoholometer PLOT-3S-M-V-R-1,1: 85-99%; Alcoholometer PLOT-3S-M-B-R-1,1: 55-85%
Ambient temperature	+15 to +35 degrees Celsius

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
