Vibration electrodynamic test rig VSV-206-230

Vibration Testing Stands

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

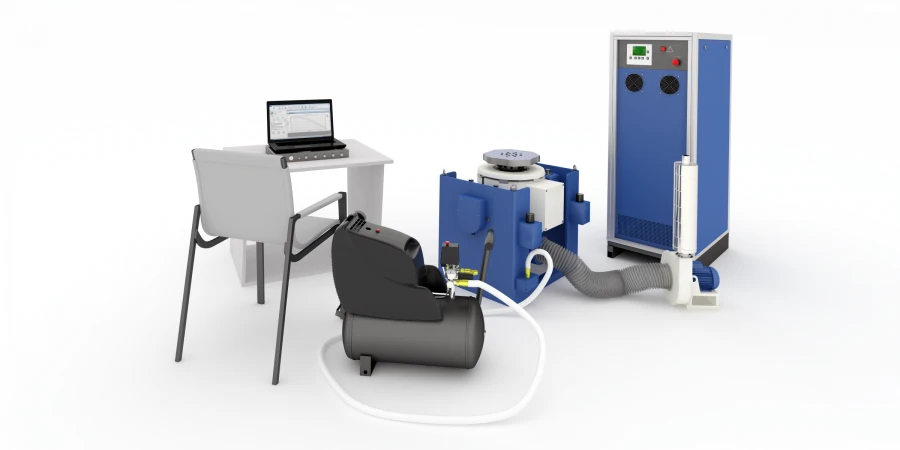

Electrodynamic vibration test rig
Designed to reproduce sinusoidal vibration, broadband random vibration, shock loads, and other types of vibration.
Design features Table diameter 230 mm., frequency range 5-4000 Hz, displacement (peak-to-peak) 51 mm., acceleration (amplitude) at zero load not less than 980 m/s2, ejection force 6 kN., mass (maximum) load 300 kg.
Advantages positioning system and super movement of the mobile system in vertical position and in horizontal position developed by Rostov Technics Ltd, power amplifier (modules, controller) developed and produced by Rostov Technics Ltd, amplifier control software developed by Rostov Technics Ltd.

Specifications

Ejection force 6000

Frequency range 5...4000

Moving (peak-to-peak) 51 mm

Speed (amplitude) 1.8

Acceleration (amplitude) 980

Maximum load 300 kg

Forcing force (sinusoidal) 6000

Forcing force (random broadband) 4200

Compulsive force (percussive classical) 12000

Type of product according to PP RF 616 8.6.2

Type of product according to PP RF 616 other instruments and devices for measurement, control and testing

Type of product according to PP RF 616 Other tools and instruments for measurement, inspection and testing

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
