Vibration electrodynamic test rig VSV-230-445 GSS

Vibration Testing Stands

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Vibration electrodynamic test rig VSV-270-480-GSS Vibration electrodynamic test rig VSV-235V-340 GSS Vibration electrodynamic test rig VSV-280-480-GSS Vibration electrodynamic test rig VSV-230-340-GSS Vibration electrodynamic test rig VSV-220-340 GSS

Vibration electrodynamic test rig VSV-216-230-GSS Vibration electrodynamic test rig VSV-2120V-480-GSS Vibration electrodynamic test rig VSV-225-340-GSS

Description

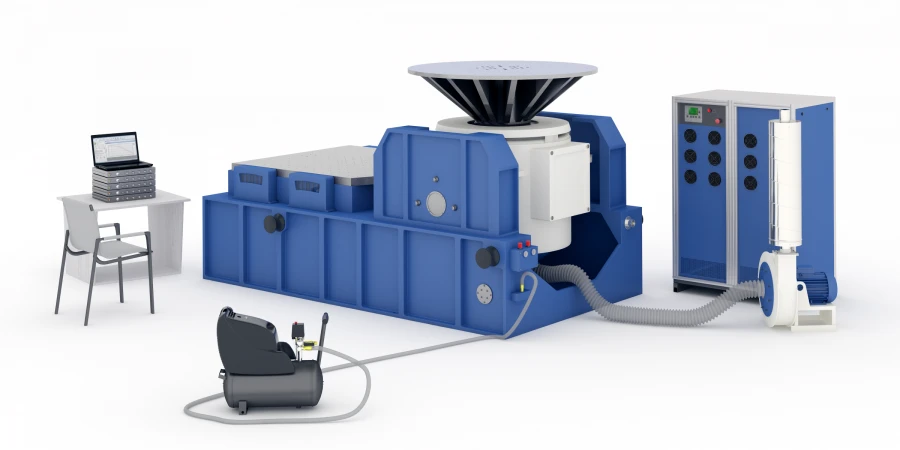

Electrodynamic vibration test rig
Designed to reproduce sinusoidal vibration, broadband random vibration, shock loads, and other types of vibration.
Design features Table diameter 445 mm, availability of horizontal table, frequency range 5-2500 Hz, displacement (amplitude) at zero load not less than 25 mm, acceleration (amplitude) at zero load not less than 780 m/s2, ejection force 30 kN, mass (maximum) load 500 kg.
Advantages positioning system and super movement of the mobile system in the vertical position and in the horizontal position developed by Rostovskaya Technika LLC, power amplifier (modules, controller) developed and produced by Rostovskaya Technika LLC, amplifier control software developed by Rostovskaya Technika LLC.

Specifications

Compulsive force (percussive classical) 60000

Forcing force (random broadband) 21000

Forcing force (sinusoidal) 30000

Maximum load 500 kg

Acceleration (amplitude) 580

Speed (amplitude) 1.8

Frequency range 5...2500

Type of product according to PP RF 616 Other tools and instruments for measurement, inspection and testing
