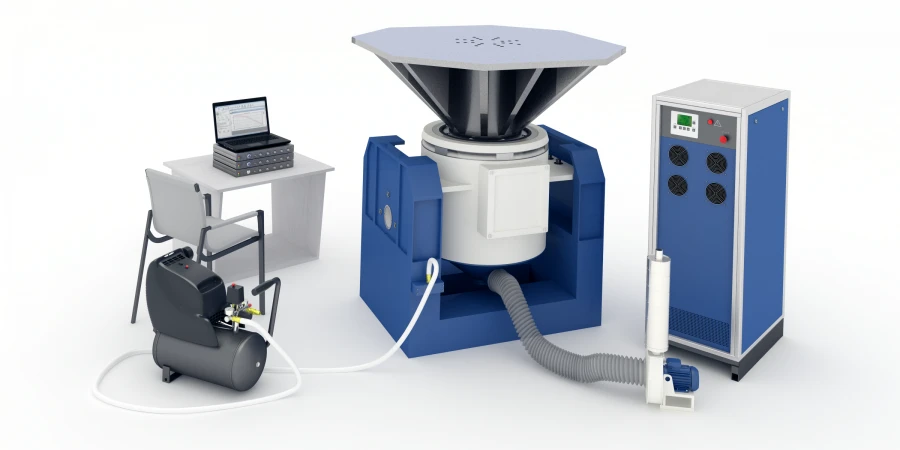

Vibration electrodynamic test rig VSV-220-445

Vibration Testing Stands

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Vibration electrodynamic test rig VSV-2350V-870 Vibration electrodynamic test rig VSV-250V-450

Description

Electrodynamic vibration test rig
Designed to reproduce sinusoidal vibration, broadband random vibration, shock loads, and other types of vibration.
Design features Table diameter 445 mm., frequency range 5-2300 Hz, displacement (amplitude) at zero load not less than 25 mm., acceleration (amplitude) at zero load not less than 686 m/s2, ejection force 20 kN., mass (maximum) load 300 kg.
Advantages positioning system and super movement of the mobile system in vertical position and in horizontal position developed by Rostov Technics Ltd, power amplifier (modules, controller) developed and produced by Rostov Technics Ltd, amplifier control software developed by Rostov Technics Ltd.

Specifications

Type of product according to PP RF 616 8.6.2

Type of product according to PP RF 616 Other tools and instruments for measurement, inspection and testing

Displacement (amplitude) 25 mm

Speed (amplitude) 1.8

Acceleration (amplitude) 686

Maximum load 300 kg

Forcing force (sinusoidal) 20000

Forcing force (random broadband) 14000

Compulsive force (percussive classical) 40000

Frequency range 5...2300
