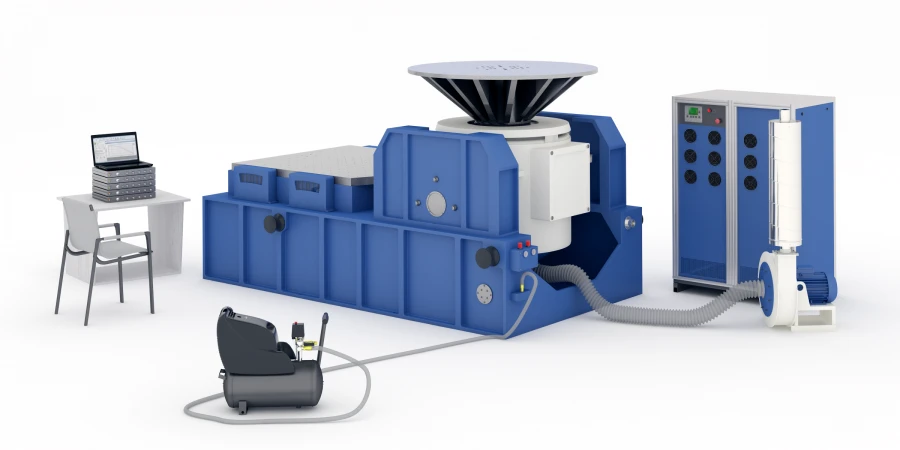

Vibration electrodynamic test rig VSV-230D(2)-445 GSS

Electrodynamic vibration test rig Designed for reproduction of sinusoidal vibrations, broadband random vibration, shock loads, and other types of vibration. Design features: table diameter 445 mm., availability of horizontal table (GSS 300, GSS 400, GSS 500, GSS 600, GSS 700), frequency range 5-2100 Hz, displacement (amplitude) at zero load not less than 50 mm., acceleration (amplitude) at zero load not less than 735m/s2, ejection force 30 kN., mass (maximum) load 800 kg. Advantages: the system of positioning and super movement of the mobile system in the vertical position and in the horizontal position developed by Rostovskaya Technika LLC, power amplifier (modules, controller) developed and produced by Rostovskaya Technika LLC, amplifier control software developed by Rostovskaya Technika LLC.
