Available for Import
Vibration electrodynamic test rig VSV-203-150 GSS
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description

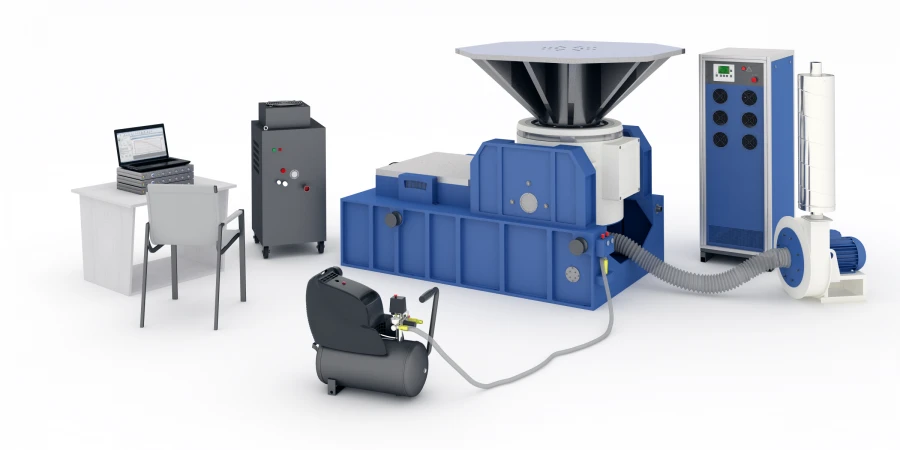

Electrodynamic vibration test rig
Designed to reproduce sinusoidal vibration, broadband random vibration, shock loads, and other types of vibration.
Design features table diameter 150 mm., horizontal table (GSS 300, GSS 400, GSS 500, GSS 600, GSS 700), frequency range 5-3300 Hz, displacement (amplitude) at zero load not less than 20 mm., acceleration (amplitude) at zero load not less than 980 m/s2, ejection force 3kN., mass (maximum) load 120 kg.
Advantages positioning system and super movement of the mobile system in the vertical position and in the horizontal position of the development of LLC "Rostovskaya Technika", power amplifier (modules, controller) development and production of LLC "Rostovskaya Technika", amplifier control software developed by LLC "Rostovskaya Technika"
Designed to reproduce sinusoidal vibration, broadband random vibration, shock loads, and other types of vibration.
Design features table diameter 150 mm., horizontal table (GSS 300, GSS 400, GSS 500, GSS 600, GSS 700), frequency range 5-3300 Hz, displacement (amplitude) at zero load not less than 20 mm., acceleration (amplitude) at zero load not less than 980 m/s2, ejection force 3kN., mass (maximum) load 120 kg.
Advantages positioning system and super movement of the mobile system in the vertical position and in the horizontal position of the development of LLC "Rostovskaya Technika", power amplifier (modules, controller) development and production of LLC "Rostovskaya Technika", amplifier control software developed by LLC "Rostovskaya Technika"
Specifications
Type of product according to PP RF 616
8.6.2
Type of product according to PP RF 616
Other tools and instruments for measurement, inspection and testing
Frequency range
5...3300
Displacement (amplitude)
20 mm
Speed (amplitude)
1.8
Acceleration (amplitude)
980
Maximum load
120 kg
Forcing force (sinusoidal)
3000
Forcing force (random broadband)
2100
Compulsive force (percussive classical)
6000
