SW-2212HDAE-12G - 2 channel switch 2 in 1 12G/3G/HD/SD-SDI
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description

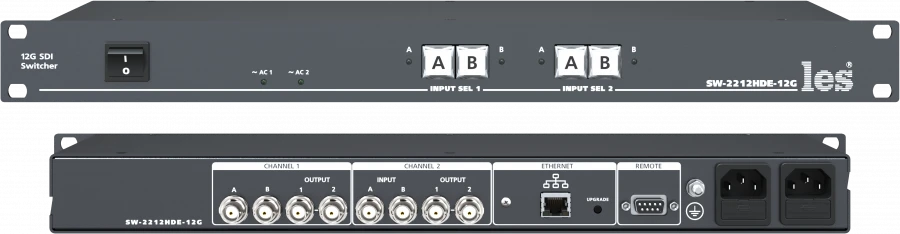

SW-2212HDAE-12G is a 12G/3G/HD/SD-SDI signal switcher. It consists of two independent 2-in-1 switches (channels) with output branching to 2. Each channel has a relay bypass, equipped with control buttons and indication. Cable correctors are installed at the inputs and carrier frequency restorers at the outputs.
The switch has two modes of operation - 2-in-1 switch and standby switch. In the first case, both inputs are equivalent, control is performed by front panel buttons, GPI signals or via Ethernet. In automatic mode, the switch analyses the presence of a signal on each input and can switch to the standby input if the main input fails. The alarm state latching mode allows the switch to stay on the "Backup" input after the signal appears on the "Main" input.
SW-2212HDAE-12G writes an event log, has two power supplies.
The switch has two modes of operation - 2-in-1 switch and standby switch. In the first case, both inputs are equivalent, control is performed by front panel buttons, GPI signals or via Ethernet. In automatic mode, the switch analyses the presence of a signal on each input and can switch to the standby input if the main input fails. The alarm state latching mode allows the switch to stay on the "Backup" input after the signal appears on the "Main" input.
SW-2212HDAE-12G writes an event log, has two power supplies.
Specifications
Standard of processed signals
12G/6G/3G/HD/SD-SDI/DVB-ASI
Number of independent switches
2 pc
Number of inputs per switch
2 pc
Number of outputs per switch
1 (branching into 2)
Connector type
BNC
Input / output resistance
75 ohm
Maximum permissible voltage on inputs
5 V
Nominal output signal magnitude
0.8 V
Inlet/outlet flow rate
0.27...12
Duration of HD-SDI output signal edge, not more
250
Supported Ethernet type
100 Base-TX/10 Base-T
Ethyernet connector type
RJ-45
Number of GPI inputs
4 pc
Number of GPI outputs
2 pc
GPI input signal type
pulse, level
GPI output signal type
level (open manifold)
Connector type for GPI signals
DB9 female
Ethernet control
Web interface / SNMP
Control from third-party equipment
GPI signals
Power supply voltage
100...240 V
Power consumption, max.
8 W
Operating temperature range
5...40 °C
Overall dimensions, (W - H - D)
483...44 mm
Weight
2.2 kg
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
